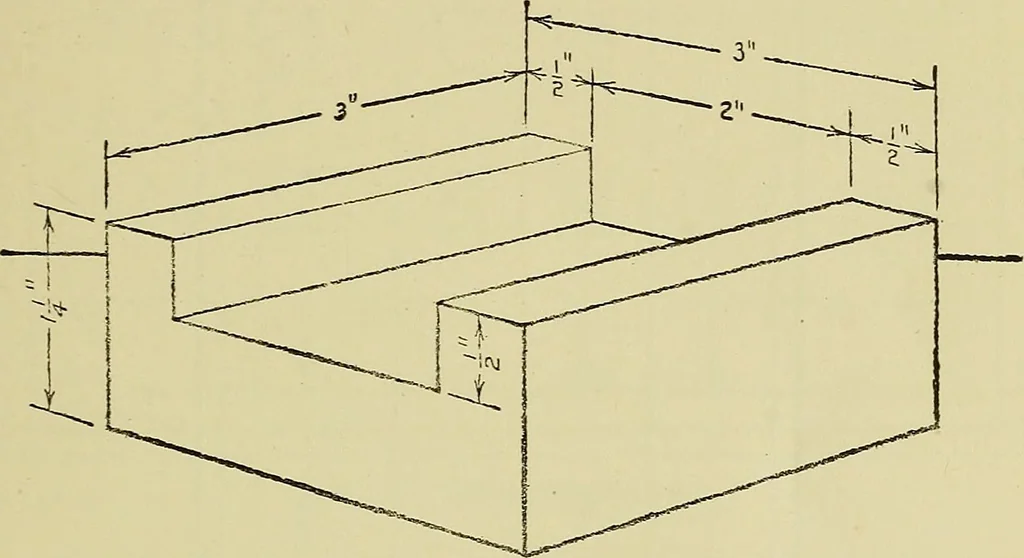

reater than one-half of the width PERSPECTIVE SKETCHING 37 of the face of the cube. Draw line 11. lu the same manner lo-cate and draw line 12. Draw lines 13, 14, and 15 convergingwith lines 2 and 6. Draw line 16 vertically from the intersectionof lines 7 and 13. Draw line 17 converging with lines 3… … Fig. 27. Sand Paper Block 7. Write the plate number and name in the lower right handcorner of the sheet and press the paper back into the thumb tackholes as directed in Plate 1, page 21. PREPARATORY INSTRUCTIONS FOR LETTERING PLATE 2 Curved Strokes. In making the curved strokes of the 5 andthe 2…
Mechanical drawing
