The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)

Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 385

An illustration from The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others, 1880, leaf 385

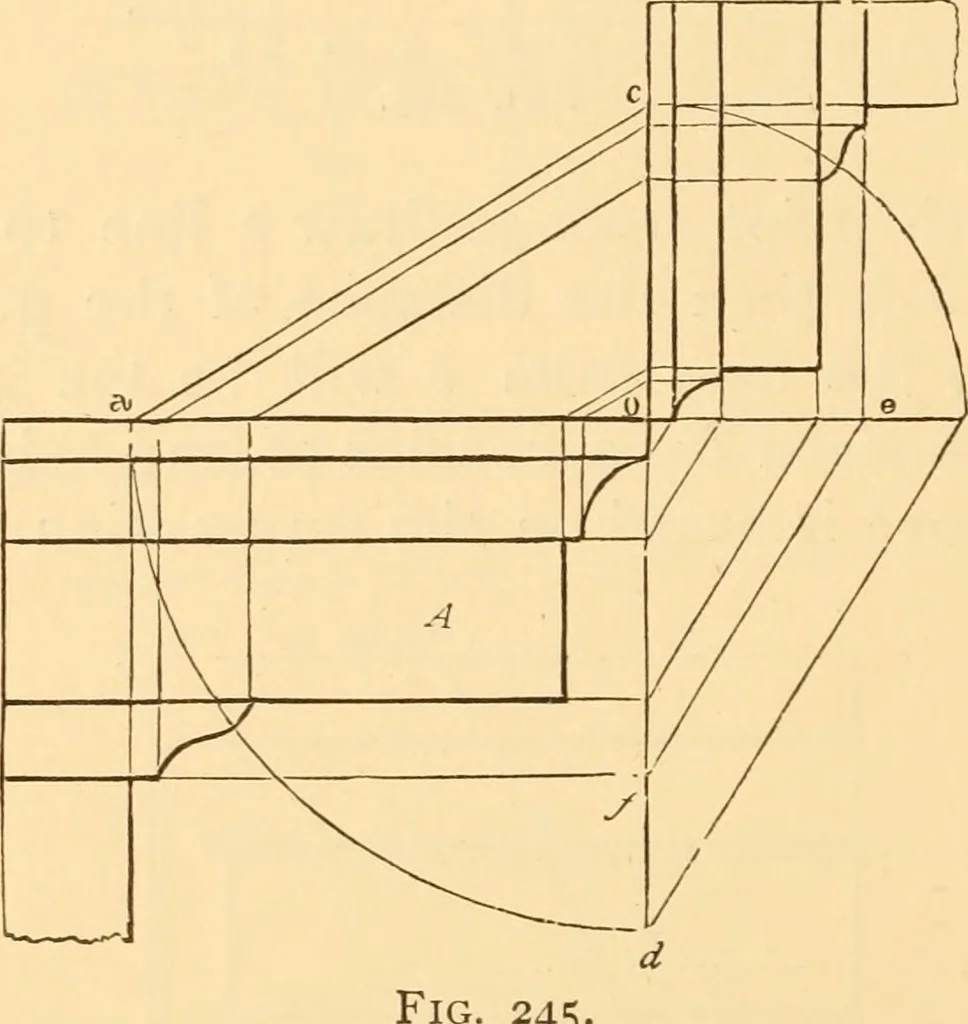

g^iven Cornice.—Let the cornice at Fig. 244 be the given cornice. Upon anypoint in the lowest Hne of the lowest member, as at a, with theheight of the required cornice for radius, describe an intersect-ing arc across the uppermost line, as at <^; join a and b;then b i will be the perpendicular… … 245- proposed cornice, draw ^ <^ at right angles to a b, and c d ditright angles to ^ ^; parallel with c d draw lines from eachprojection of the given cornice to the line ad\ then ^<^ willbe the required projection for the proposed cornice, and theperpendicular lines falling upon e d will…

Carpentry · Architecture · Building
