Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 110

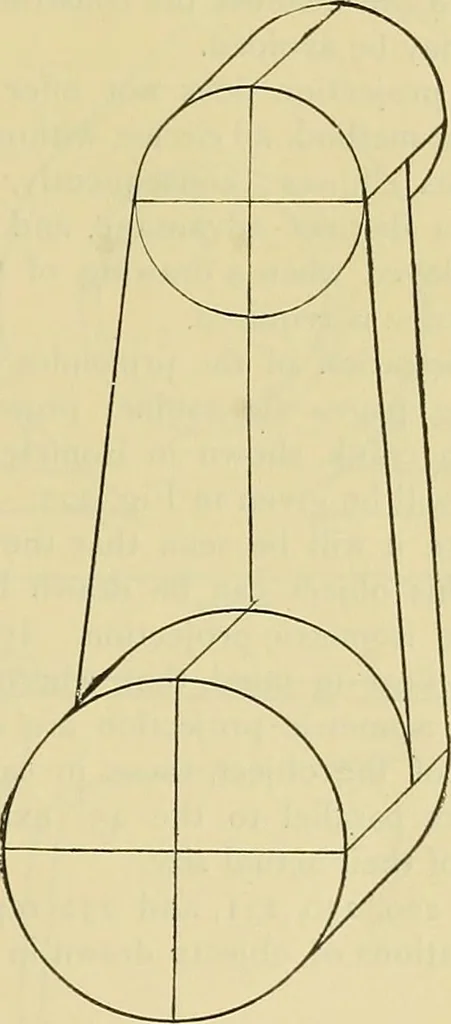

, each tangent to both thesecurves, will complete the cabinet projection ofthe cylinder. ROGERS DRAWING AND DESIGN, 125 Example III.—From the drawing in this figure226, it is evident that the construction in this case isexactly the same as in case 2. From the above problems it will be seen that v \… … PiG. 23T. resented in Example I ; in this position, as alreadypreviously stated, all circles in the object will berepresented by their actual sizes in the cabinet pro- 126 ROGERS DRAWING AND DESIGN
Mechanical drawing · Machine design
