Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 134

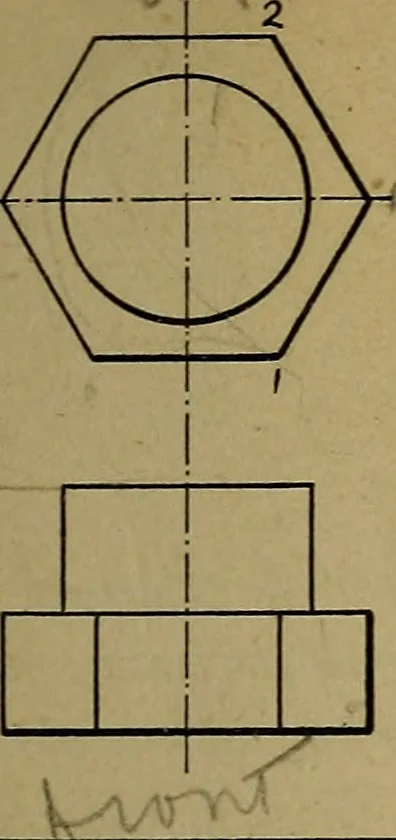

front plane. Draw the front view of A first; then the top view. For the top view ofjff place the top view of A at 30° and then obtain the front view of B, asexplained in Arts. 112 and 113. At C are given front and top views of the prism when in an uprightposition. The exponents F, T and S used in… … - Fig. 78.
