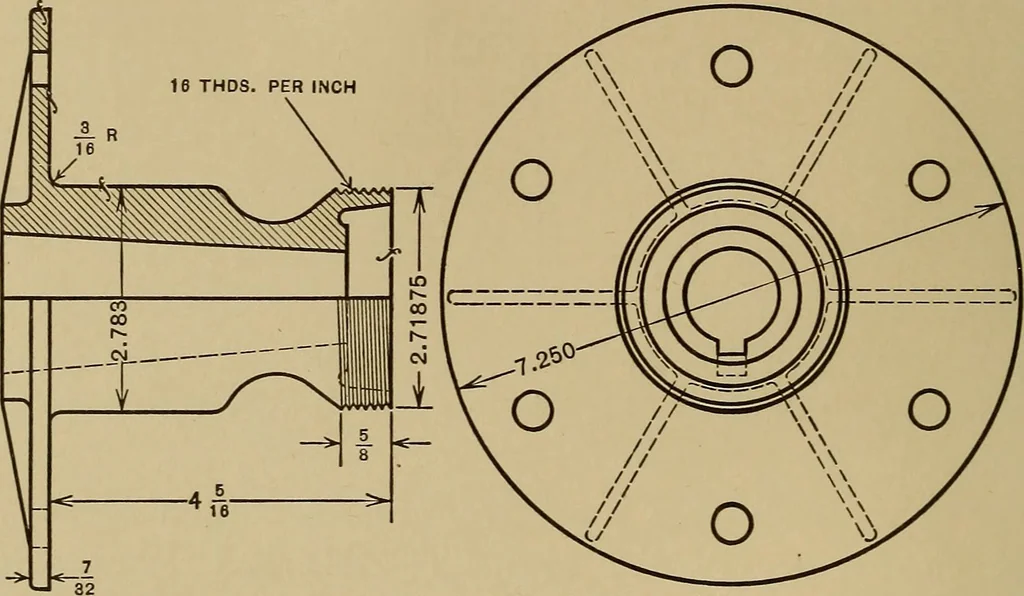

he rear wheel hub of an automobile. 112 MECHANICAL DRAWING As will be seen, the sectional view extends down only to thecenter line. This part section shows very distinctly the shapeof the hub; the exterior view below the center line shows thethreaded end to better advantage than would a… … REAR WHEEL HUB - STEEL CASTING Machinery Fig. 20. Automobile Wheel Hub which is shown partly in Section Another example of a part section is shown in Fig. 21,which illustrates a conical shaped cinder pot having flangesat each end and a bottom plate bolted to the lower flange.The sectional view to…
