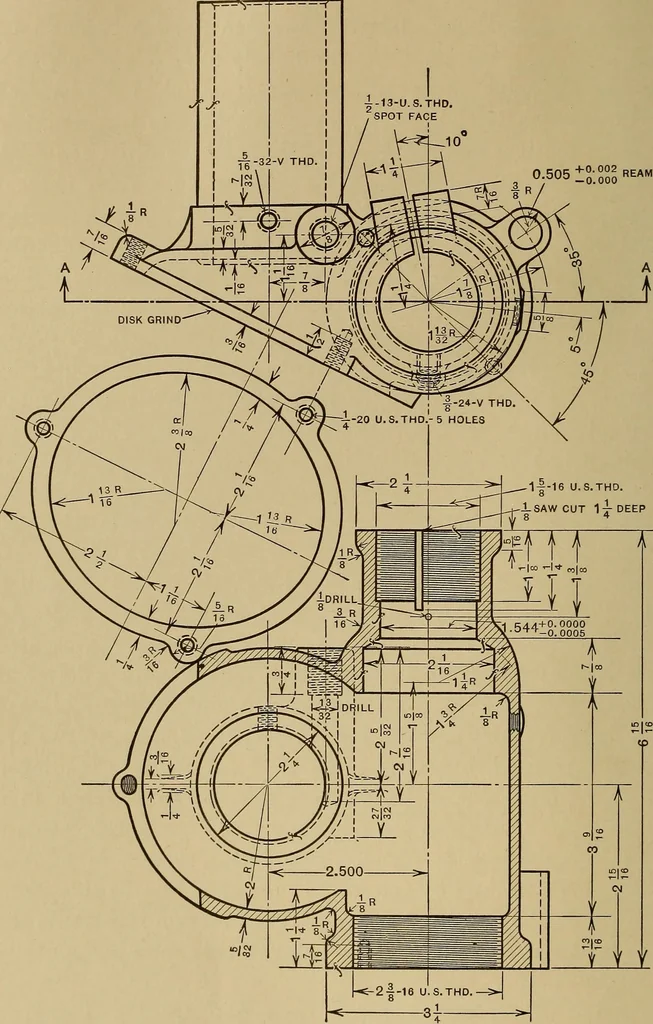

shown in Fig. 24 represents aview in a horizontal plane. This latter section is marked Section B-B, and by referring to the elevation, or side view,beneath it, the line B-B shows that the section represents thecasting as it would appear if cut through the center horizontallyalong this plane.… … SECTION A-A Machinery Fig. 23. Automobile Steering Gear Case — Note how Relation of Sectional Viewto Plan View is indicated SECTIONAL VIEWS 117 r^^f^^
