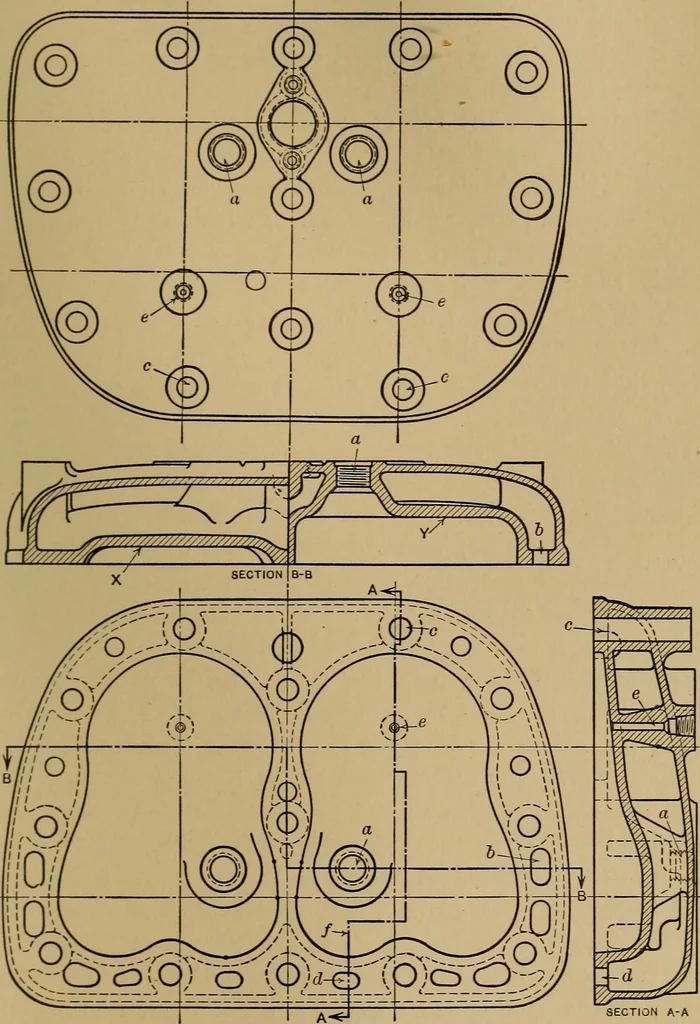

t shows that the hook is somewhat V-shaped.The particular part of the hook which is given this V-shapedform is indicated by the line A, which represents the limitsof the flattened surface. This method of placing cross-sec-tions right on another view and at the point where the sectionis taken, is… … SECTION A-A Machinery Fig. 31. Drawing of Cylinder Head Casting which illustrates Certain Points inthe Reading of Drawings than those previously referred to, and illustrates several in-teresting features. As it was necessary to reduce this drawing 128 MECHANICAL DRAWING greatly in order to show it…
