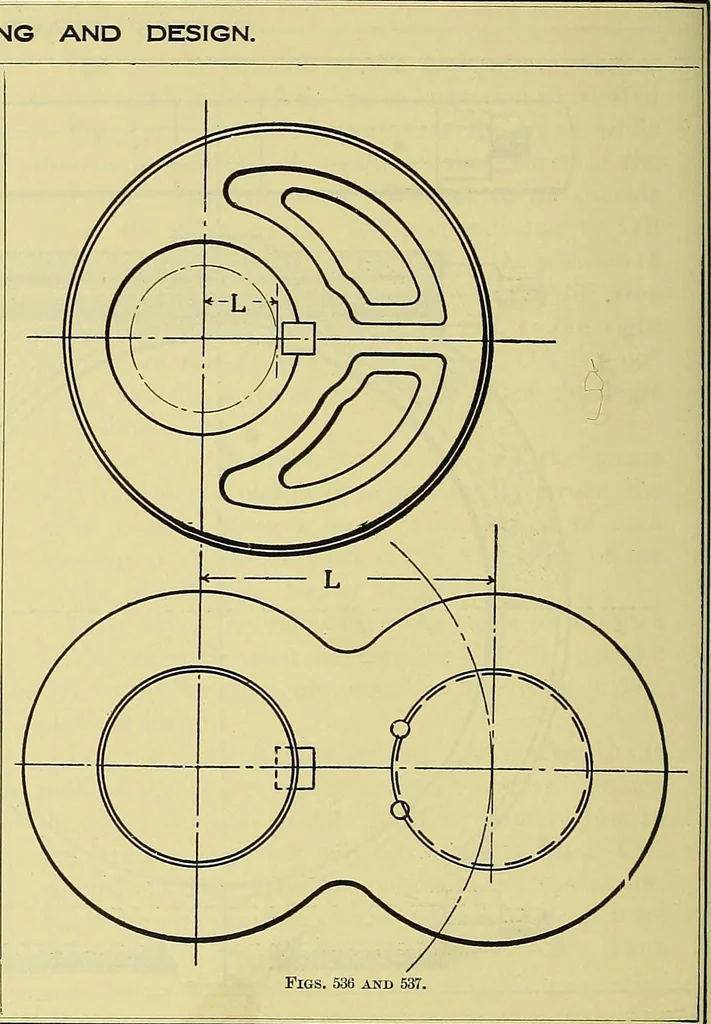

Fios. 531 AITD 53S. 374 ROGERS DRAWING AND DESIGN. … the distance OMwill correspond to the distance thevalve has moved from its middle position. MakeQO equal to MO. If more positions of the eccen-tric are taken, and for each one a similar construc-tion employed, the points corresponding to thepoint Q, found above, will, when joined, produce acurve…
