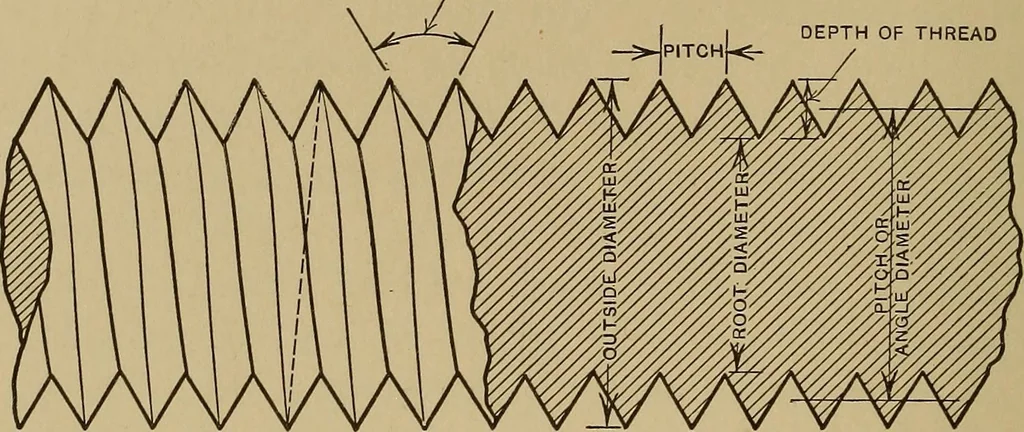

ts. It is not only necessary for the draftsman to be fa-miliar with the different machine details and conventionalmethods in general use, but to understand how and whereto employ them. Screw Thread Details. — As the screw and nut are usedon almost every kind of mechanical device, the… … Machinery Fig. 1. Drawing showing Meaning of Various Terms which are applied toScrew Threads different countries or for certain purposes that they are nowtermed standard. The screw thread in most general usein the United States is the United States standard and if notdefinitely stated otherwise,…
