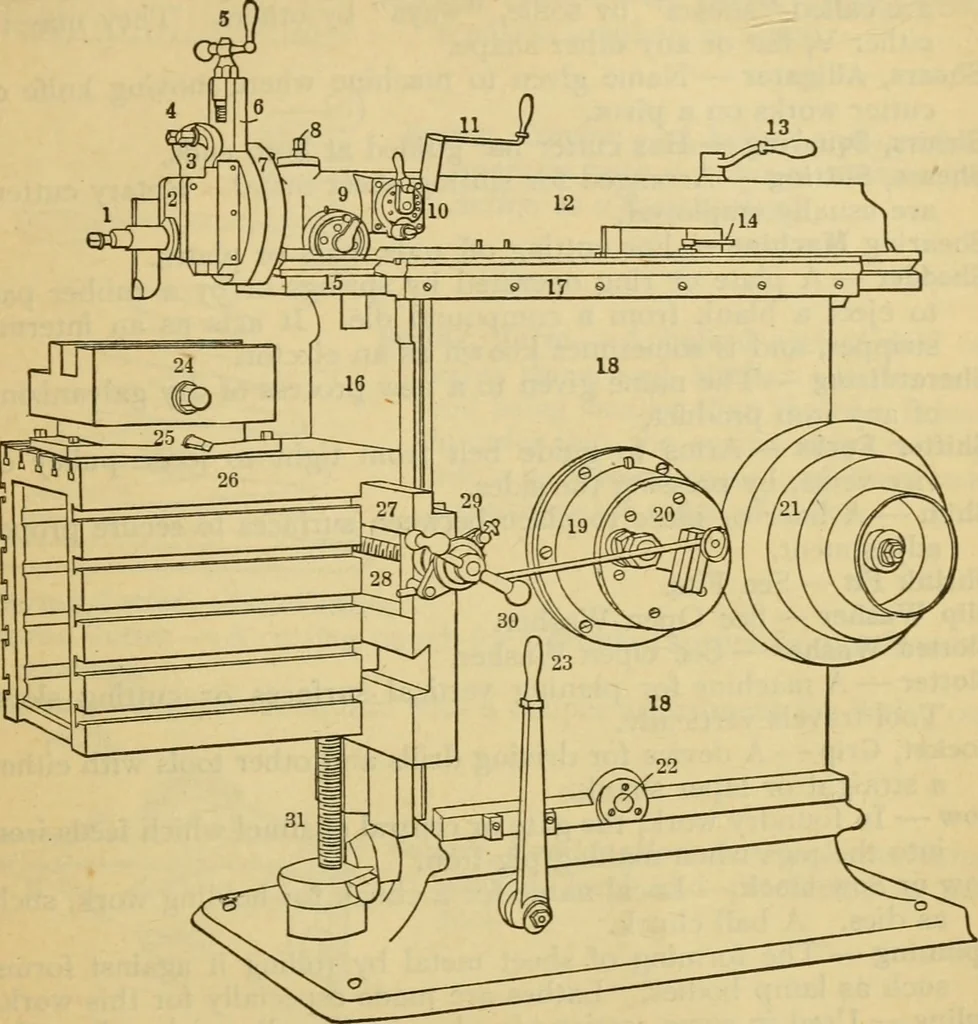

ead. 24. Vise. 9. Stop for down feed. 25- Swiveling base. 10. Down-feed adjustment. 26. Table. II. Ram adjuster. 27. Saddle. 12. Ram. 28. Cross-feed screw. 13. Position lever. 29. Cross-feed dog. 14. Clamp for down feed. 30- Cross-feed handle. 15 Ram slide. 31- Elevating screw. 16. Face of column.… … SHAPER — POTTER AND JOHNSTON Shaper, Friction — Ram is driven by rack and pinion through frictionclutches. Ram is reversed by simultaneous release and engage-ment of these clutches. These are driven by open and crossedbelts in opposite directions. Shaper, Gear — Planes gear teeth by using a…
