Mechanical drawing for industrial and high schools (1917)
Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 58

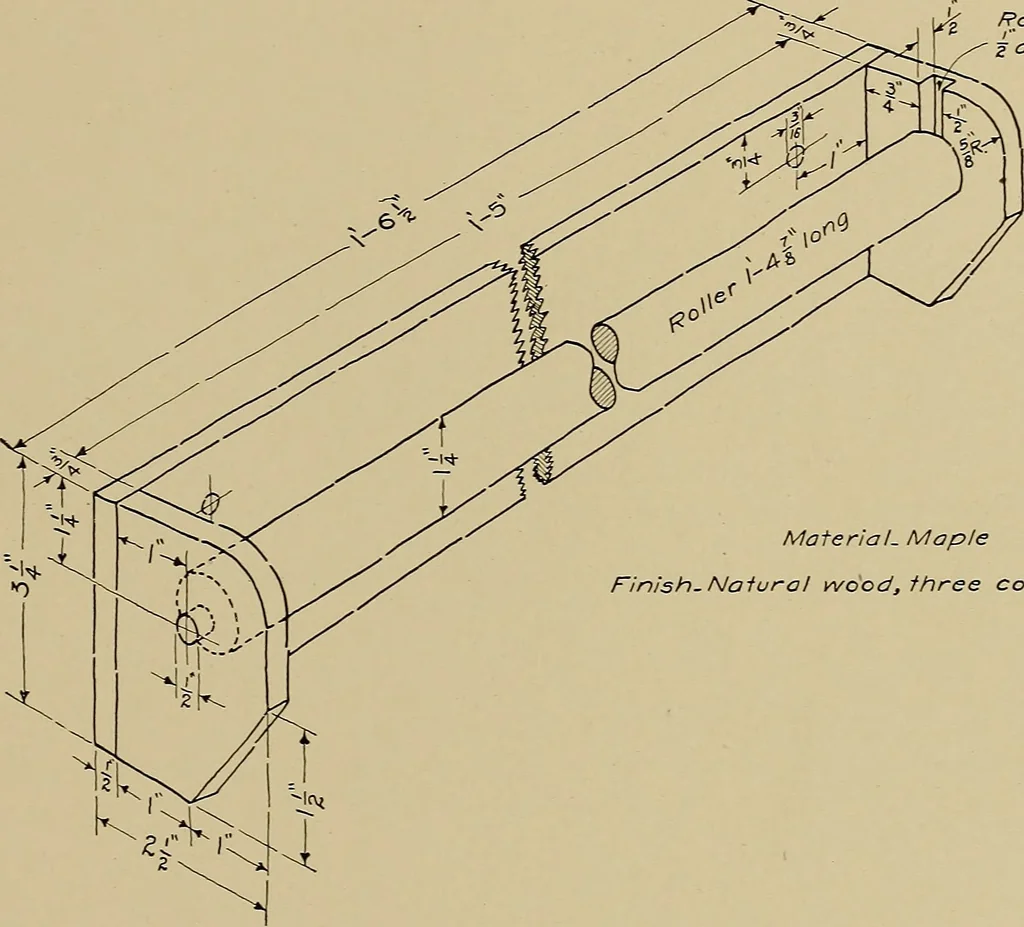

From the sketch on Drawing C-1017, the student is expectedto make a three-view mechanical drawing. These three viewsshould represent the top, front, and one end of the towel roller. Make this drawing full-size scale, with the exception of thelength, which should be taken care of by breaking out… … ^ Roller pin dia.X a loi^g Material. MapleFinish-Na fur a I wood, three coats varnistt CL*33 Industrial NAME John W. Roberts date Mar. 13-15. Towel. ROliver Dna.No-C.IOI7 LESSON No. 26. COUPLING.—From the sketch shown on Drawing C-1018,make an accurate half-size pencil drawing and tracing of the…
Mechanical drawing
