Mechanical drawing for industrial and high schools (1917)
Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 76

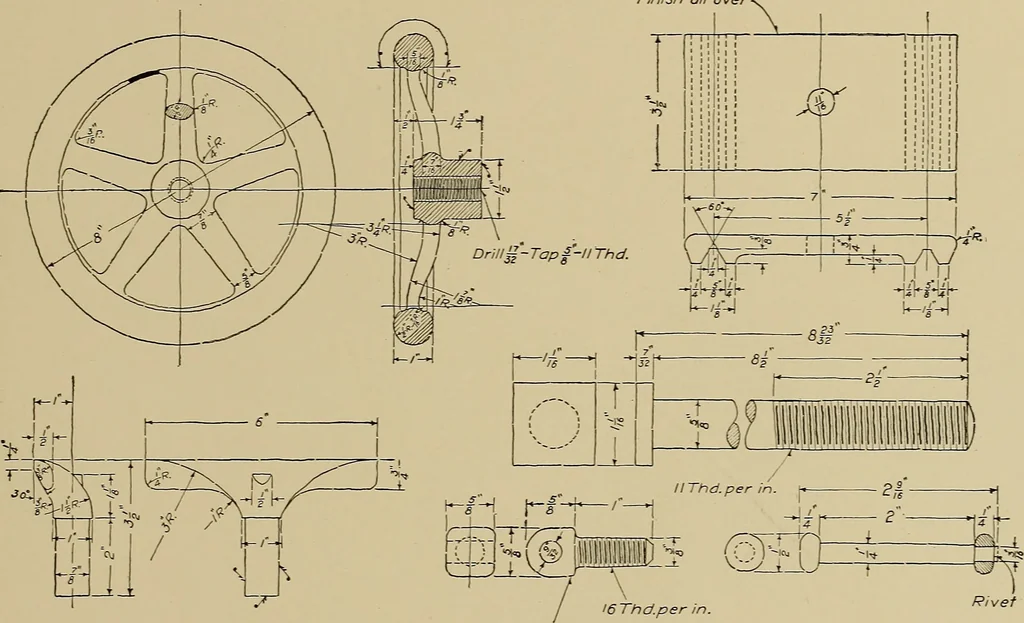

e sur-face on which it is placed is to be finished. On such pieces as bolts, screws, pins, shafts, spindles, and manysimilar shapes it is not necessary to place a finish mark, as it is under-stood that these pieces are usually finished all over. Do not overlook any of the dimensions on the various… … l6Thd.per in. Harden Class Industrial NAME John W.Roberts datcDec. 12-07. \ IP Speieid Lathe:Tool Rest Details SCALE ^ & Full Size owa.No. C.I0S5 LESSON No. 33. TOOL-REST ASSEMBLY.—Drawing C-1026 is an assemblydrawing of the complete tool rest. This drawing is used for the purpose of showing…
Mechanical drawing
