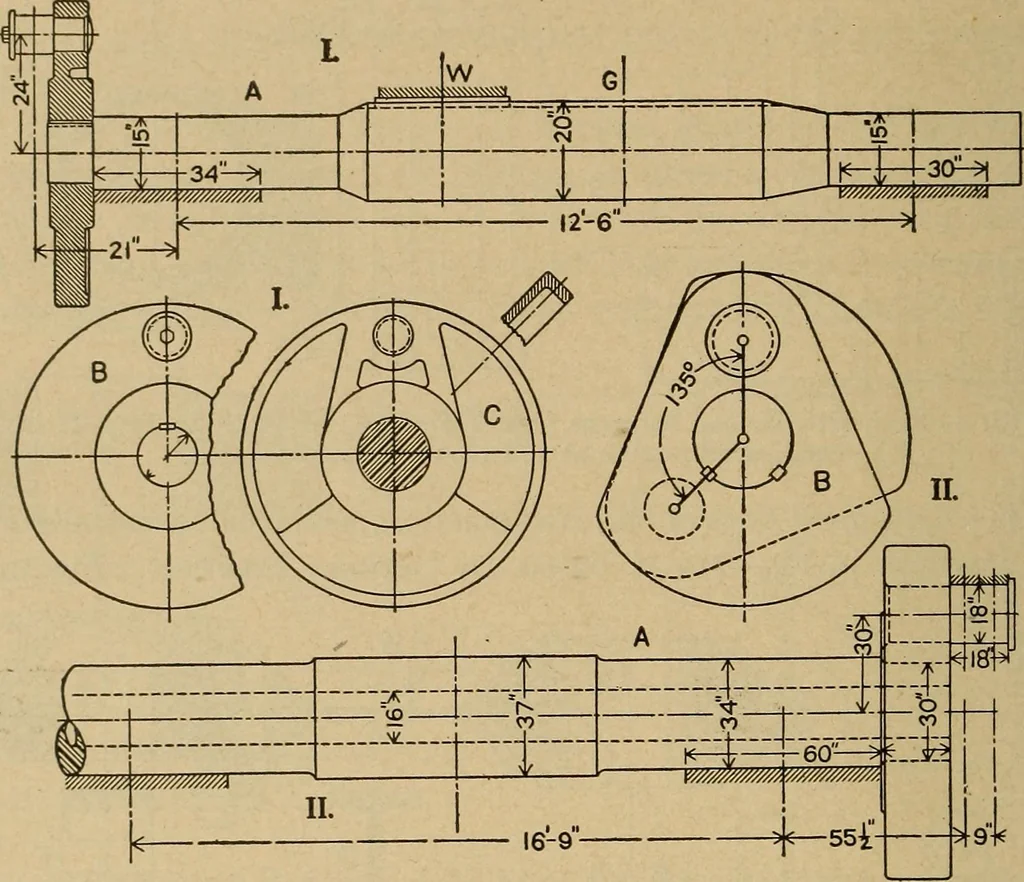

ON OF THE ENGINE. [Chap. VII. service, crank-pin boxes are generally lined with white metal, beingcommonly made of cast iron or steel; at the smaller wrist pin, withmuch less motion in the joint, brass boxes are almost universal. (i) The Crank Shaft. — The usual type of shaft for… … Fig. 215. — Large Shafts with Built-up End Cranks. I, for engine in Fig. 3, scale1 to 40; II, for 44 and 88 by 60 in. duplex horizontal-vertical Corliss, like thatin Fig. 137, rated 8000 i.h.p. at 75 r.p.m. Scale 1 to 72. shrunk fits, the holes in the disc being bored about one in one thou-sand…
