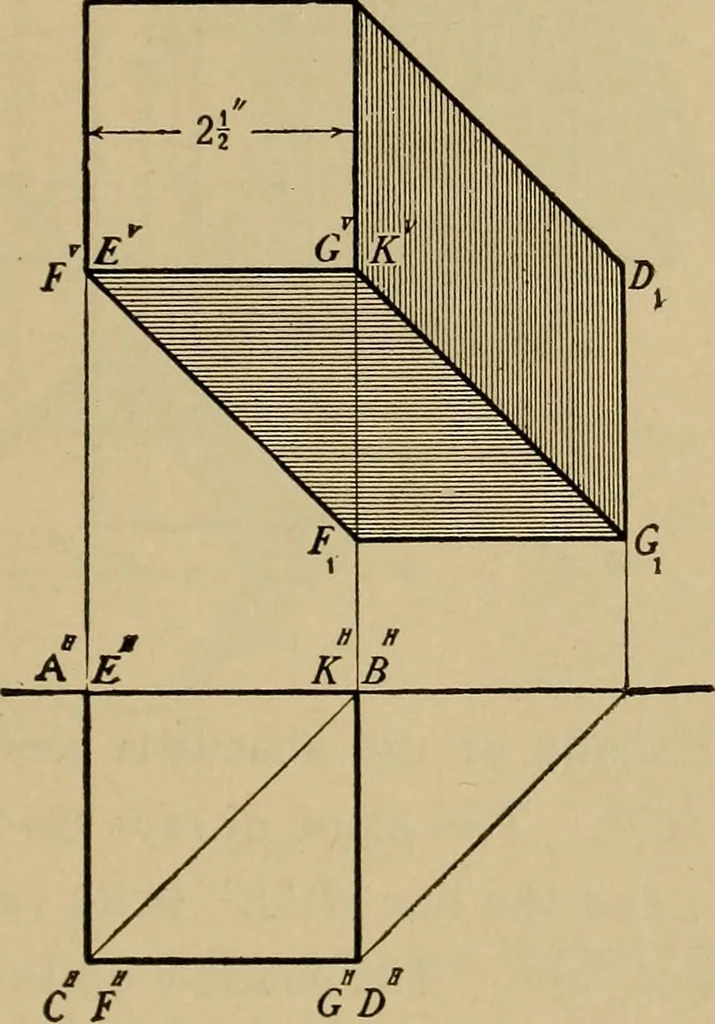

Dv, and AHCH, BHDr\ drawrays making the angle of 45° (or any other angle which maybe adopted) with G.L., and determine the shadows of thesepoints as explained in Fig. 155. They will be found in thepoints AB, C, DXH. Join these points with right linesand they will form the line of shadow of the… … Fig. 159.of shade is composed of edges EF> FG, GD, DB, and theedges AE and AB in V.P. which coincide with their shadows. n6 MECHANICAL DRAWING. The shadow of EF is EVFX, of FG is Fx GXJ of GD is GXDX,of Z>^ is DXBV. The shadows of the edges AE and .4.5coincide with the lines. These shadows…
