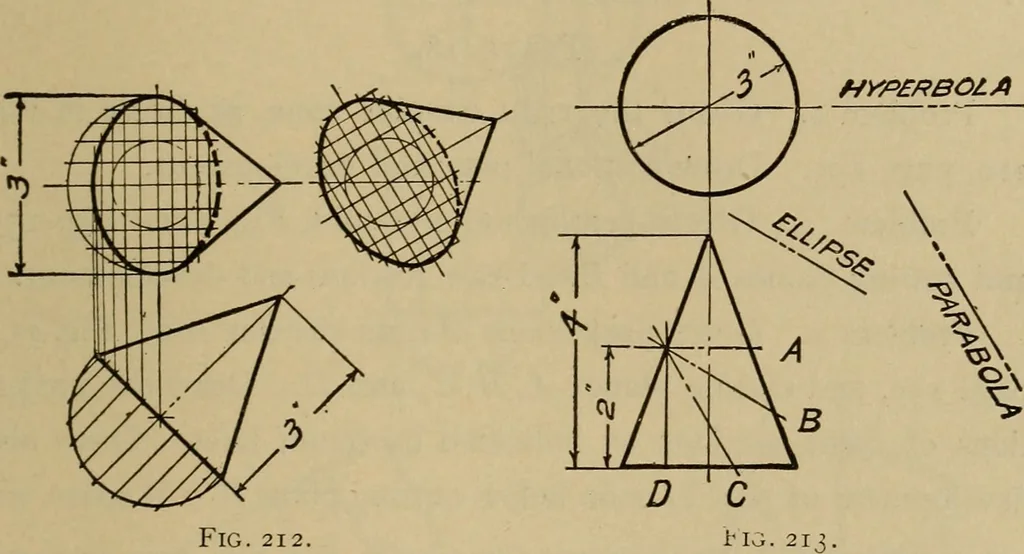

Fig. 2c6. Fig. 207. Fig. 208. Fig. 209. Fig. 210. Fig. 211. … Fig. 212. locate problems 1,2, and 3 along the top of the sheet and problem 4in the lower left hand. Plate 17. Developments. Scheme the layout of all the problems in this plate beforebeginning to draw. Problem 1. Given the elevation and plan of a pentagonalprism, Fig. 206, page 155, 1 side, if…
