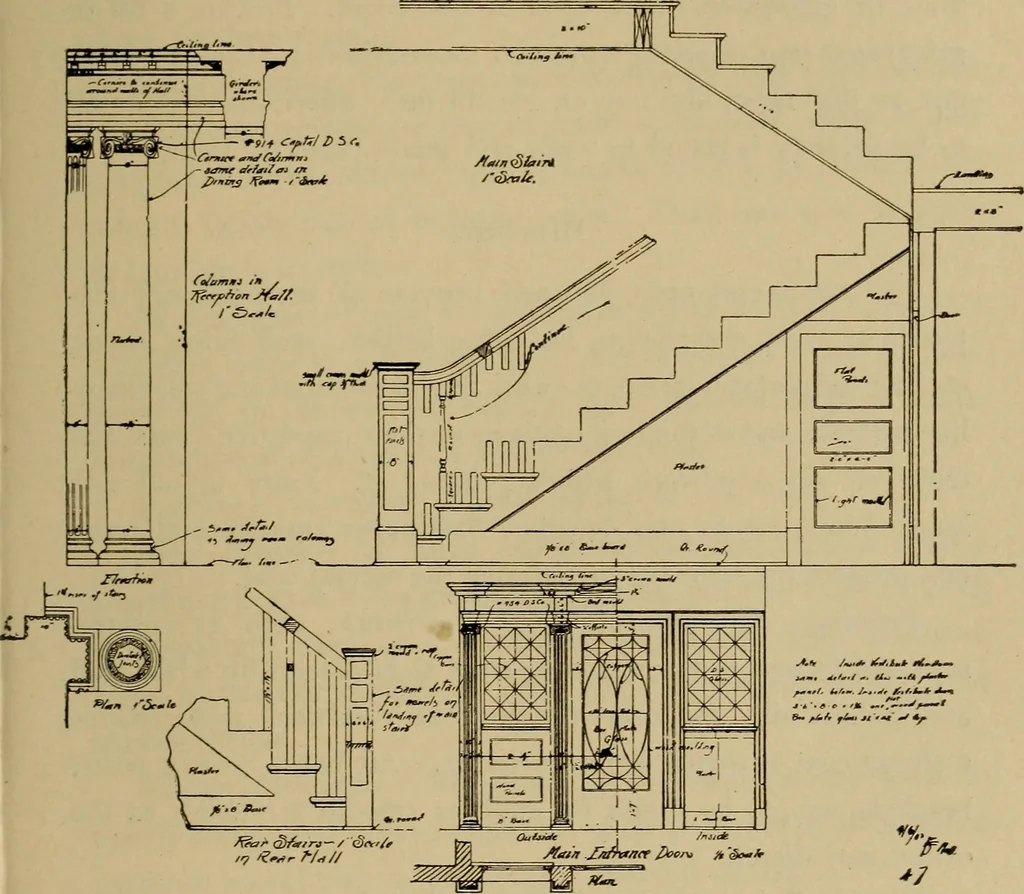

ingles. All valleys to be lined with 20 N. & G. Taylors Targetand Arrow tin. Flashings.—Flash around all chimneys, and from roof up intobrickwork, and counterflash same with tin as above specified.Provide substantial galvanized-iron fasteners for down spoutswhere shown. (See details.) Iron… … Fig. 258. Residence for G. W. Wilson, Champaign, 111. Brown Brothers, Architects, No. 808-9Security Savings Bank Bldg., Cedar Rapids, Iowa. 202 MECHANICAL DRAWING. doors, frames, etc., and iron throat and damper for fireplace.(Coverts Patent Iron Throat and Damper.) Guarantee.—The whole of the…
