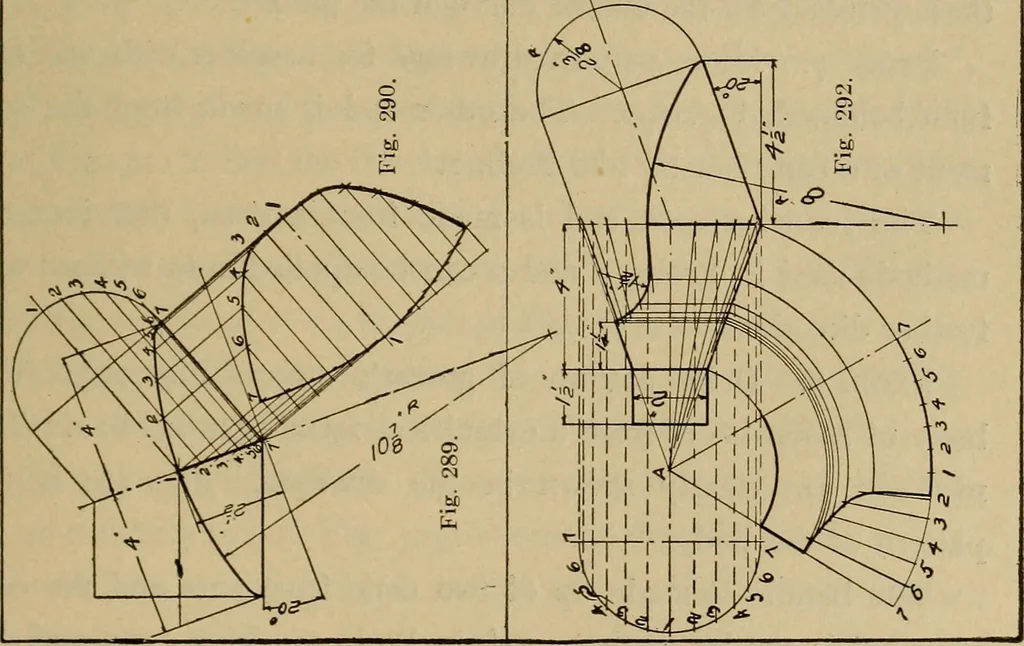

220 MECHANICAL DRAWING. end view is shown in Fig. 291. This scoop is similar to that ofProb. 1 except that it is formed from the segments of cones.Draw the elevation and end view, divide the half of the end viewas shown and through these divisions draw horizontals to cut theline CD. Draw the…
