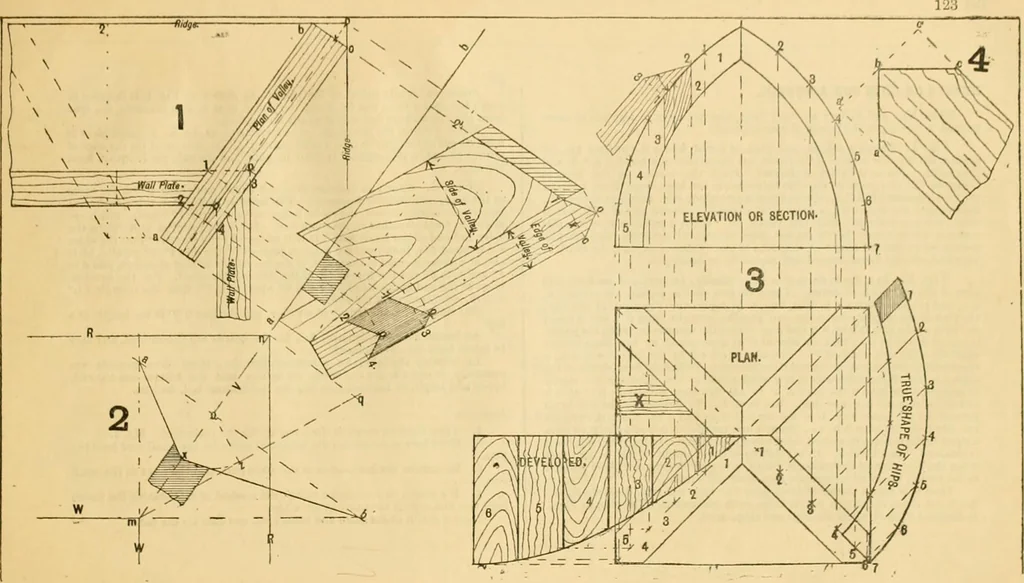

h your templet upon the side, it will show the amountto be taken off. This principle was explained when treating on anglebrackets. 1. Show how to obtain the bevels for a valley rafter, both roofshaving the same pitch. 2. Show how you would obtain the same angle or backing as Fig. 2,by usingjhe… … BEVELS OR CUTS FOR A PURLIN. When hips and valleys are very long, they are often met by one or morepnrlins, according to the length of spar required. Fig. 1. Shows a section and plan of a roof, where the pnrlins are cutagainst the hip, the section of the purlin has its corners numbered 1,2,3, 4,…
