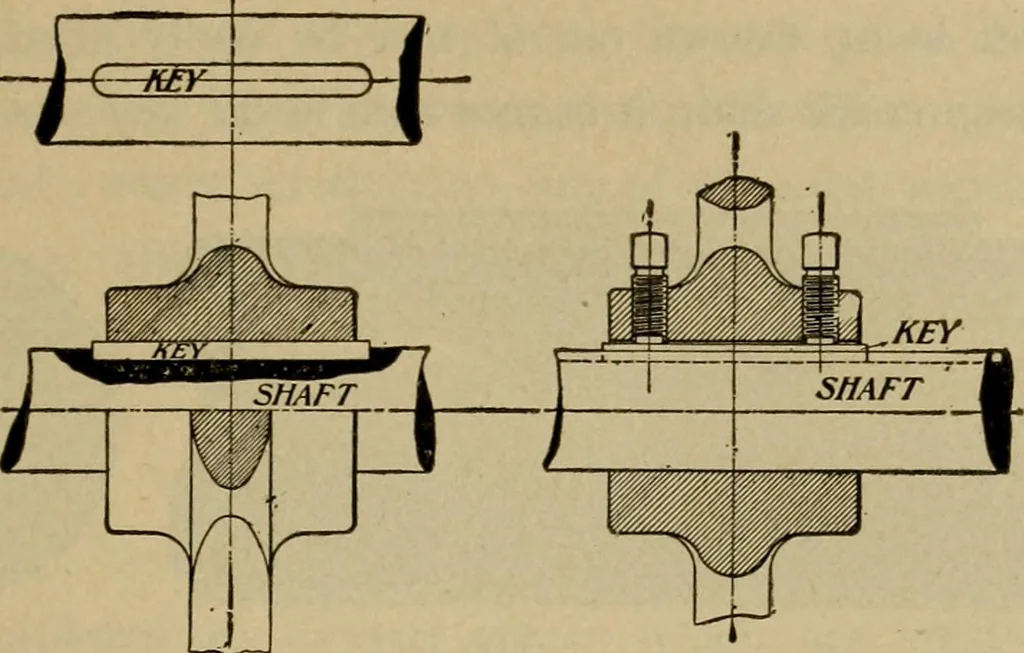

key to be driven into placeafter the keyed-on piece is in position. The fixed key issunk into the shaft, as in Fig. 333, and the keyed-on piece isdriven into position after the key is in place. When a keyed-on piece has to be adjusted to differentpositions on the shaft, to avoid the trouble of… … Fig. 333. Fig. 334. Sliding Feather Key.—This system of keying securesthe piece to the shaft, to transmit motion of rotation, and atthe same time allows the keyed-on piece to move along the
