Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 323

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 323

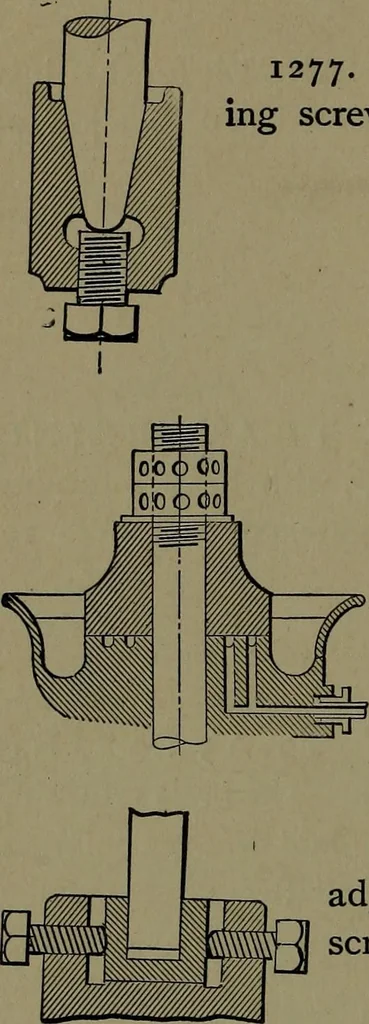

1273. SCREW TRAVERSINGBALL BEARING. The balls returningby a side passage. Ball grooves enlargedfor full strength of shaft. 1274. HANGING SHAFT on ball bearings. 1275. SUSPENDED SHAFT on ball bearings. 1276. CURVED STEP BEARING, with oUreservoir. $i6 MILL AND FACTORY APPLIANCES. … 1277. CONICAL PIVOT BEARING and adjust-ing screw. 1278. LUBRICATION OF A HANGINGBEARING by hydraulic pressure. Oil isforced into the grooves of the bearing throughthe small holes and discharges into the cuparound the outside. 1279. VERTICAL SHAFT STEP.—Madeadjustable by a nriovable bearing held by…
