Mechanical drawing. Elementary and advanced (1910)

Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 286

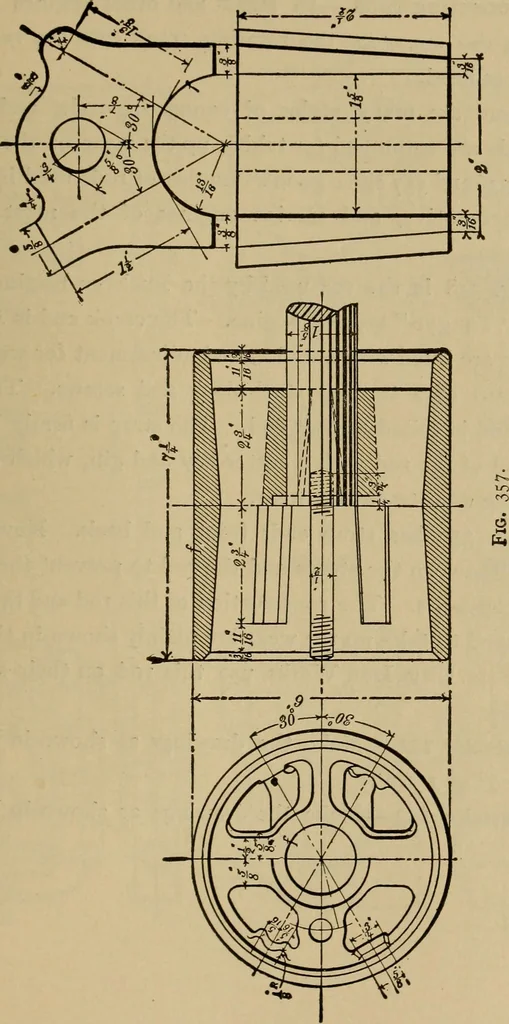

An illustration from Mechanical drawing. Elementary and advanced, 1910, leaf 286 — ndopposite halves of each end of the muff are bored to the sizeof the shaft. Studs and nuts hold the wedges in place,making, on the whole, a cheap and effective coupling withoutthe use of keys. The principal dimensions of this coupling for variousdiameters of shaft are given in the following… … 272 MECHANICAL DRAWING. Connecting-rods.—In steam and other engines the con-necting-rod connects the rotating crank with the reciprocat-ing cross-head. There are many styles of connecting-rods, and variousmethods are employed for taking up the wear of the brasses.Figs. 356 and 357 show good…
