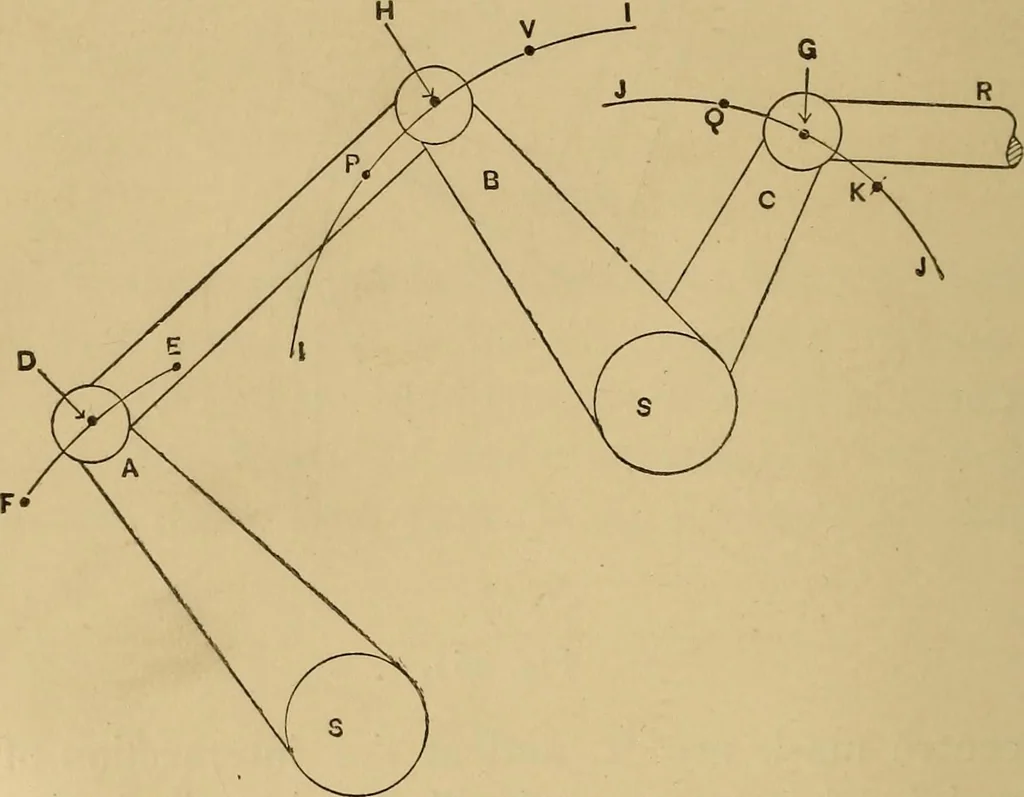

ver position the centre H may be it will be some-where on the arc I, I, which is struck from the centreS. Now suppose that D moves to E, and if we take 228 MECHANICAL DRAWING SELF-TAUGHT. the radius D, H, and from E mark it upon the arc I asat V, then H will obviously be the new position of H.To… … Fig. 263. a centre mark it on J, J, as at K, which Is the positionof G when D is at E and H is at V. For the posi-tions when D Is at F we repeat the process, taking theradius D, H, and from F marking P, and with theradius H, G, and from P as a centre marking Q; thenP Is the new position for H, and…
