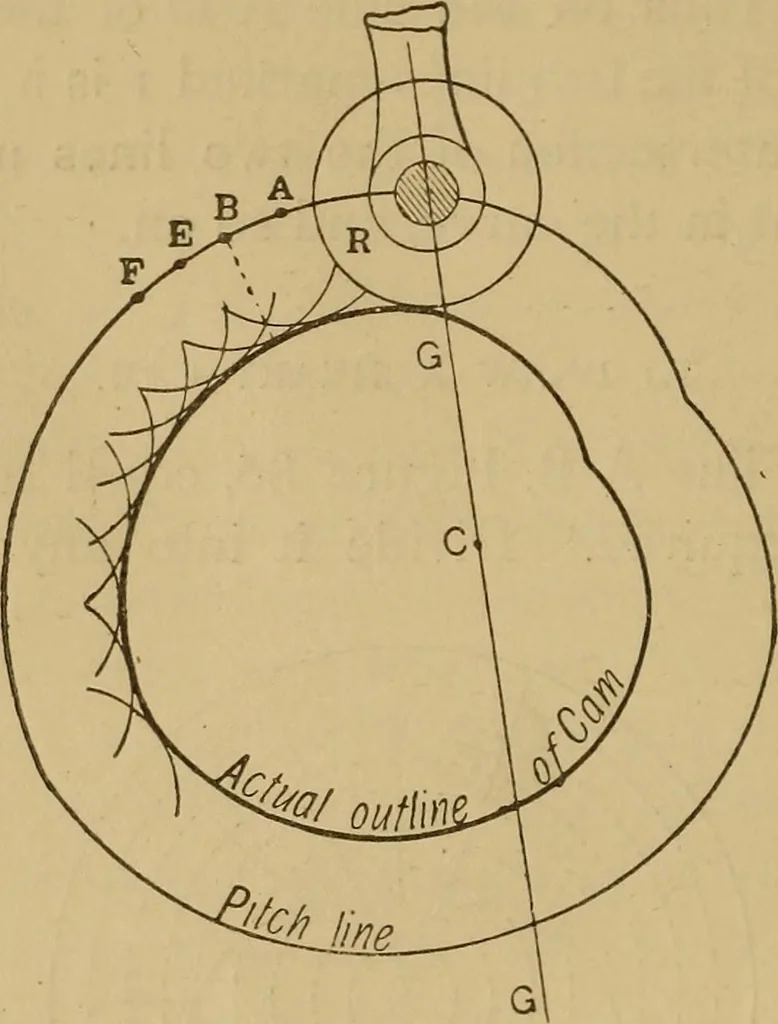

draw circlesthrough the points of division. Draw the outer circleand divide Its circumference Into twice as many equaldivisions as the line A B was divided Into. Drawradial lines from each point of division on the circle,and the points of intersection of the radial lines withthe circles are points… … Fig. 86 A. In Figure %6 A we have this pitch line, and at Rthe roller for the cam, a pair of compasses are set tothe radius of the roller, and from a number of pointson the pitch line A B, as at E, F, arcs of circles aredrawn, and touching these arcs a line may be drawnrepresenting the actual or…
