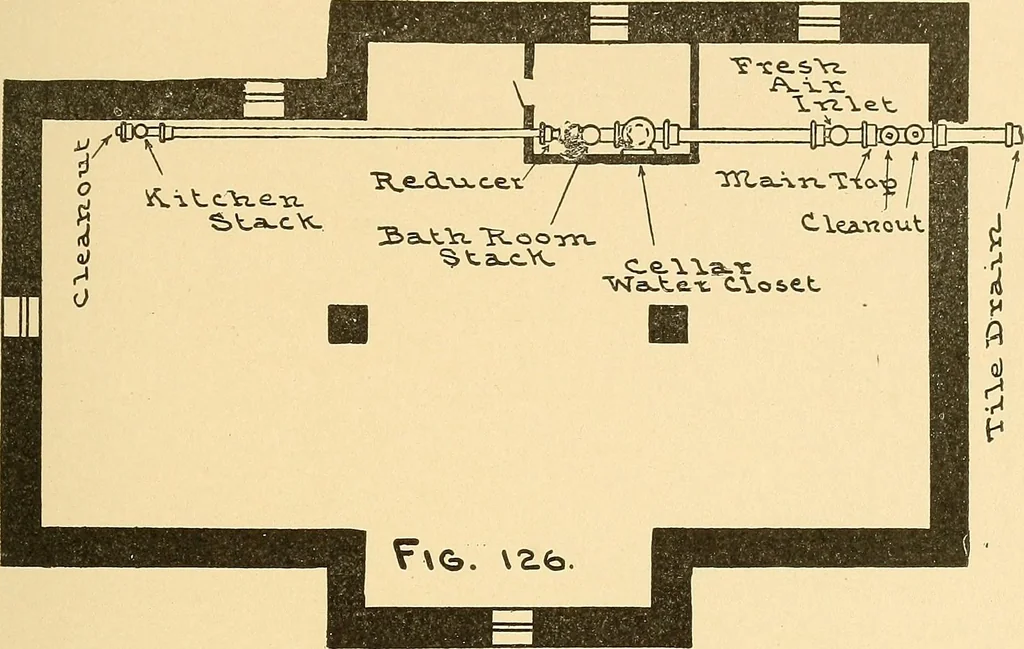

e draw-ing is only one-quarter as great. There is one fact which should be thor-oughly understood, and that is, that on ascale drawing, the dimensions should al-ways be shown in full. For instance, in planation, but it is a fact that very oftenthose not used to working a scale, are in-clined to… … Cellar Plan for Cottage House. Scale 1-8 in.=l ft.
