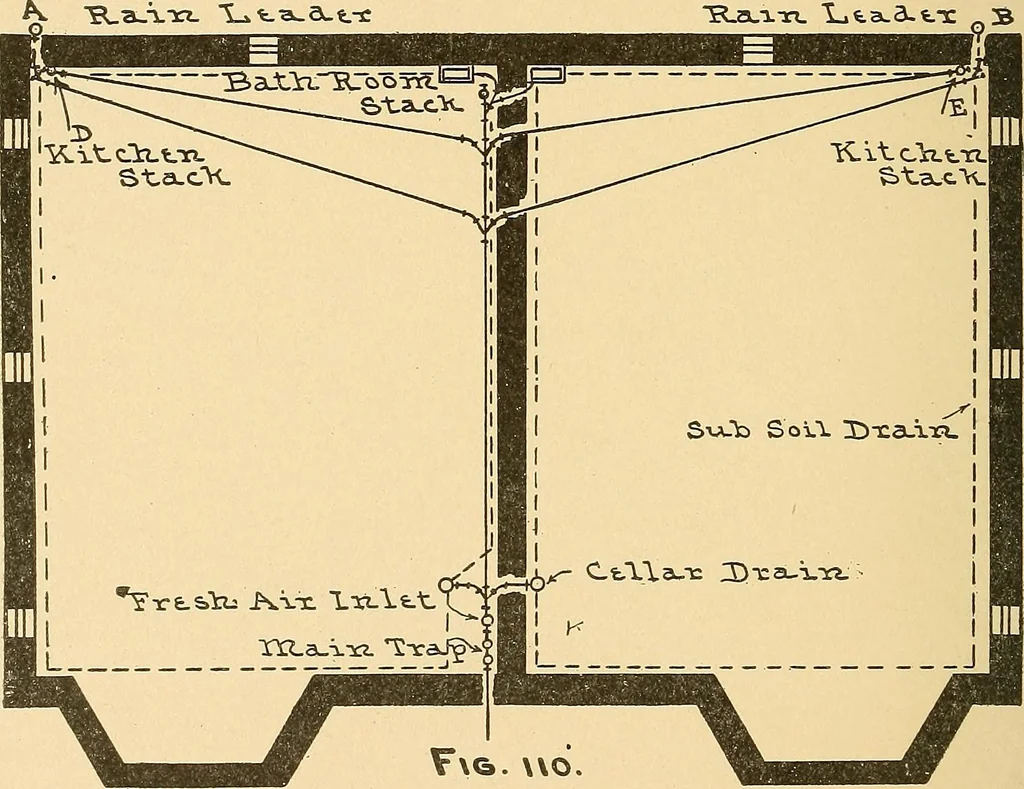

a fewpoints not heretofore covered bythe work which we have taken up,is that of a six-flat apartmentbuilding. This style of building, laid outafter the style which we show, is verycommon, and the six-flat building will all three floors, as the plumbing of eachis identical. In the cellar plan is… … MELVHT HOOSE. serve to show equally well what wouldbe found in buildings containing a largernumber of apartments. Figs. 110 and 111 give respectively thecellar plan and floor plan of the buildingin question, one floor plan serving for vided to receive the drip from the refrig-erator lines. Most…
