Mechanical drawing. Prepared for the use of the students of the Massachusetts Institute of Technology, Boston, Mass (1887)

Faunce, Linus · Boston, W.J. Schofield, Printer · leaf 33

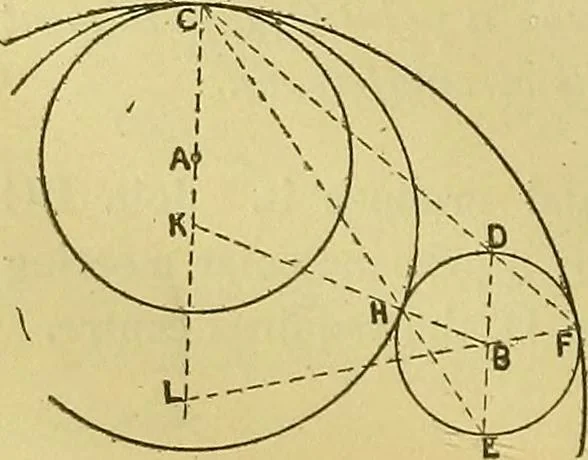

An illustration from Mechanical drawing. Prepared for the use of the students of the Massachusetts Institute of Technology, Boston, Mass, 1887, leaf 33
Prob. 57. … Same as Proh. 56. A second method. Draw a line through A and Cindefinitely. Through B draw DEparallel to CA, cutting B in D andE.. Draw CD to F and CE, cut-ting B in H. Through B and Hdraw BHK, cutting CA in K, onecentre required. Through B and Fdraw FBL, cutting CA in L, an- other centre required.…

Mechanical drawing

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
