An encyclopaedia of architecture, historical, theoretical, & practical. New ed., rev., portions rewritten, and with additions by Wyatt Papworth (1888)
Gwilt, Joseph, 1784-1863, Papworth, Wyatt Angelicus Van Sandau, 1822-1894 · London Longmans, Green · leaf 887

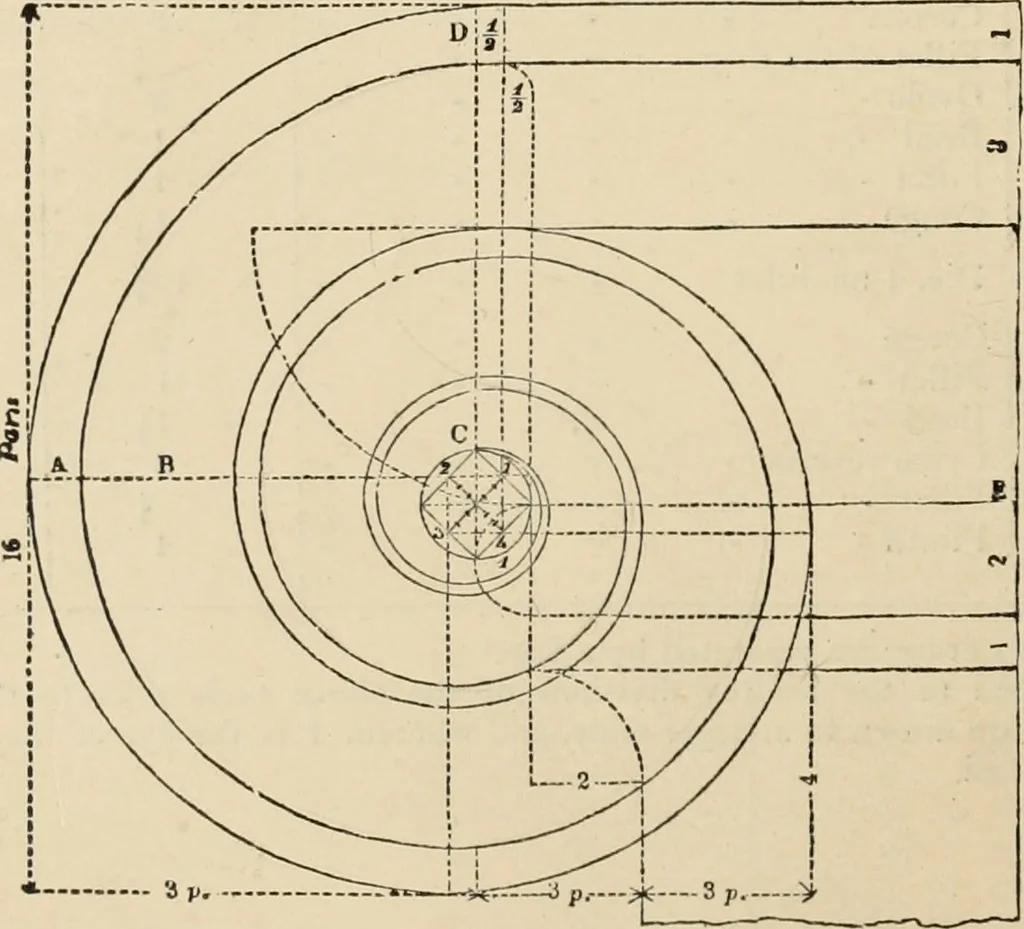

Fig. 8S5. 2.576. Fig, 886. shows the method of drawing the vohite, the centre of whose ey<, as it5s called, is found by the intersection of an horizontal line from E, the bottom of t)i» … Chap. T. THE IONIC OHDKR. 867 echinus, with a vertical tVoin 1), tlic extremity of tlie cyina reversa. On the point ofintersection, with a radius equal to one part, describe a circle. Its vertical diameter iscalled the cat/ietns, and forms the diagonal of a square, whose sides are to be bisected,…
