Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 134

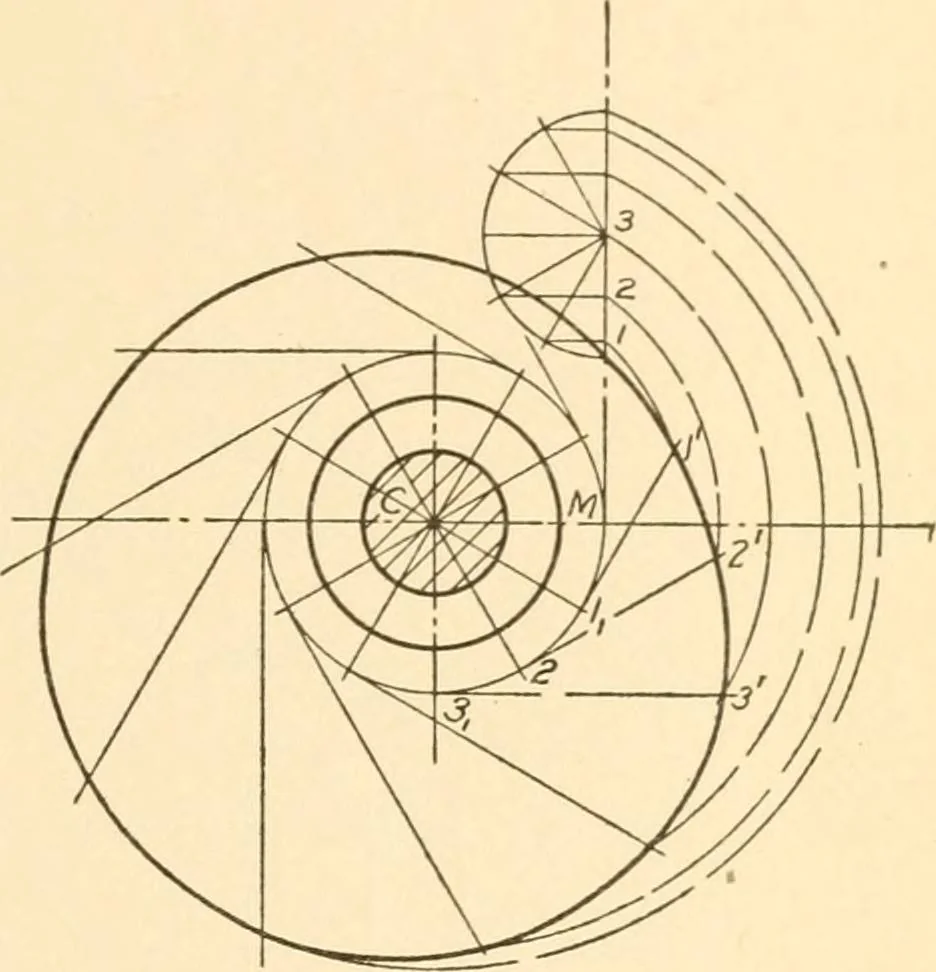

II HL Fig. 215. Cam with Offset Follower. tion and fall during the second half. Draw center line of follower downuntil it crosses horizontal center line through cam at M. With CM as aradius draw a circle. Divide rise of follower in parts to give harmonicmotion. Divide one half of the circle just…
Machinery
