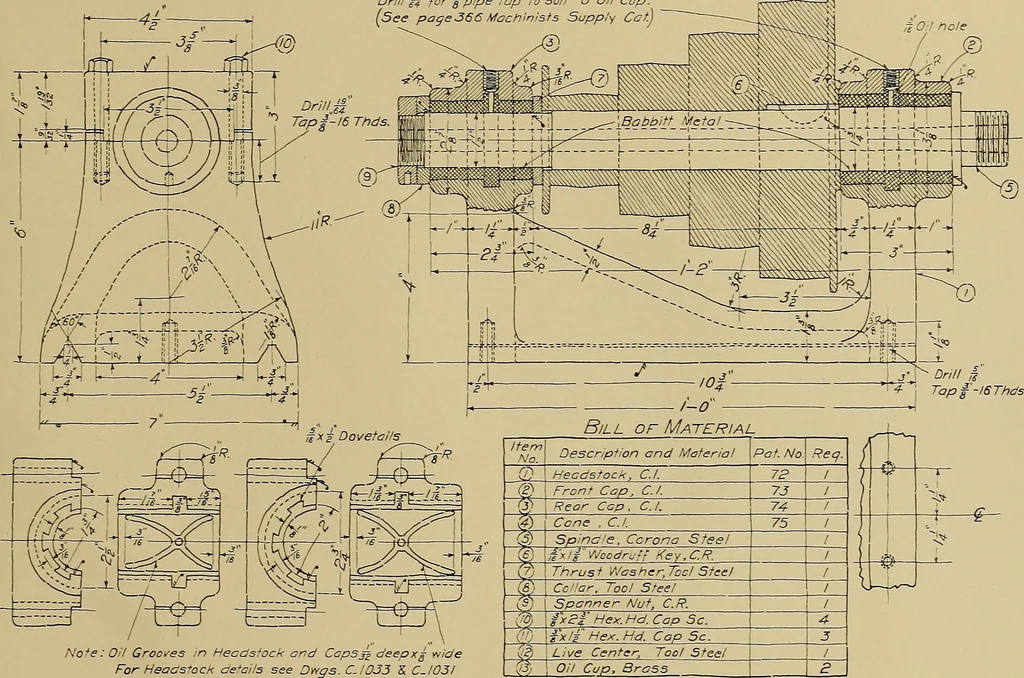

holescoincide with those shown on the bed. Lay out the Bill of :\Laterial carefully; make sure that no itemsare overlooked, as this must be complete to be of real value. Try to get a clear understanding of all these lathe drawings andof the relations between the different parts; copy nothing… … Note: Oil Grooves in Hecdsrock and Capsjg deepxg wideFor HeadsocH derails see Dngs. C.fOJJ 5 C.I031 ct/tss Indusfrial trade Machinist NAHi£ John ^.Roberts date Feb.6-08. THE CARNEGIE TECHNICAL SCHOOLS PITTSBURSH, PA. School or Apppentices asd Journeymen MECHAMICAL DRAYJING 12 Speed LatheHeadstock…
