Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments. Elementary instruction in practical mechanical drawing. Together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers (1889)

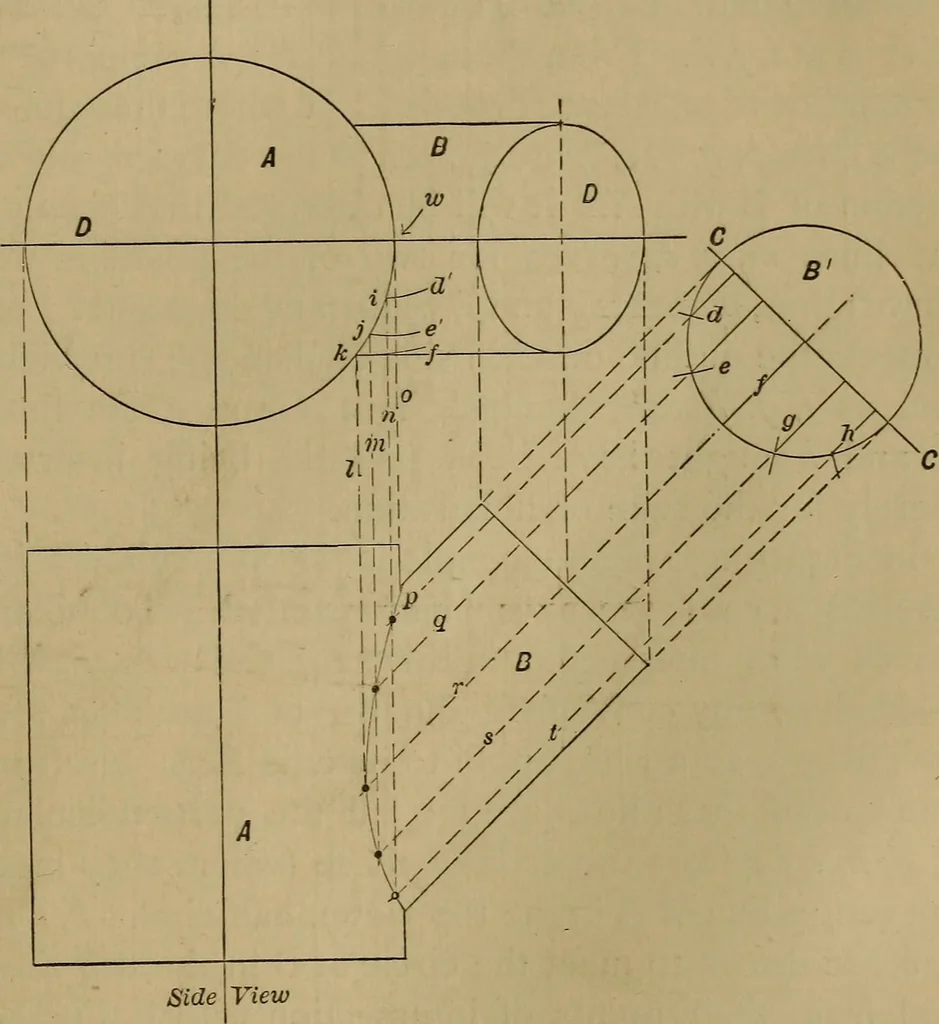

■^ide^Yiew Fig. 22S. end view, passes within the line x before the curve ofintersection begins, and in transferring the lengths of PROJECTIONS. IS: the full lines b, c, dy e, f, to the end view, and mark-ing the arcs b\ d, d, e?, f they are marked from thepoint w (the point where the centre line of… … View Fig. 229. In these examples the axis of B stands at a right-angle to that of A. But in Figure 229 is shown the construction where the axis of B is not at a ri^ht- 0 j36 MECHANICAL DRAWING SELF-TAUGHT. an >le to A. In this case there is projected from B, inthe side view, an end view of B as…
