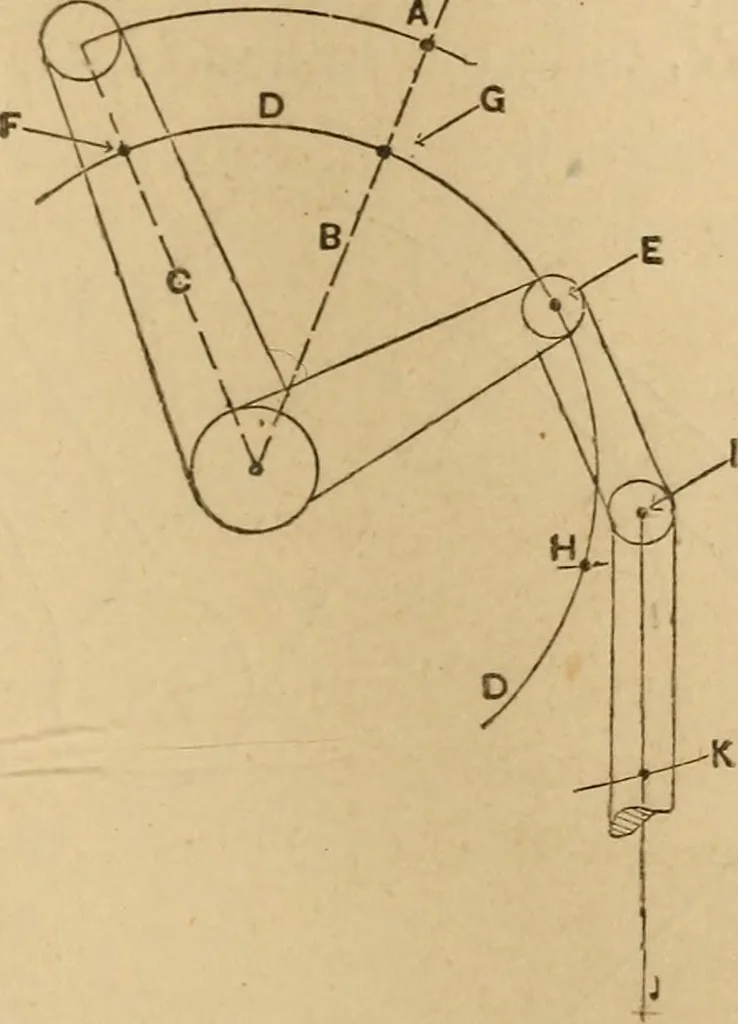

new position for the eye or centre O of R. In l^^igure 262 we have a case of a similar lever actua-ting a plunger in a vertical line, it being required to findhow mucli a givcm amount of motion of the long arm willactuate the pli.nger. Suppose the long arm to move PLOTTING MECHANICAL MOTIONS. 227… … Fig. 262. a centre mark arc K, and at the intersection of Kwith J is where the eye I will be when the long armhas moved to A. In Figure 263 are two levers upon their axles orshafts S and S; arm A is connected by a link to armB, and arm C is connected direct to a rod R. It is re-quired to find the…
