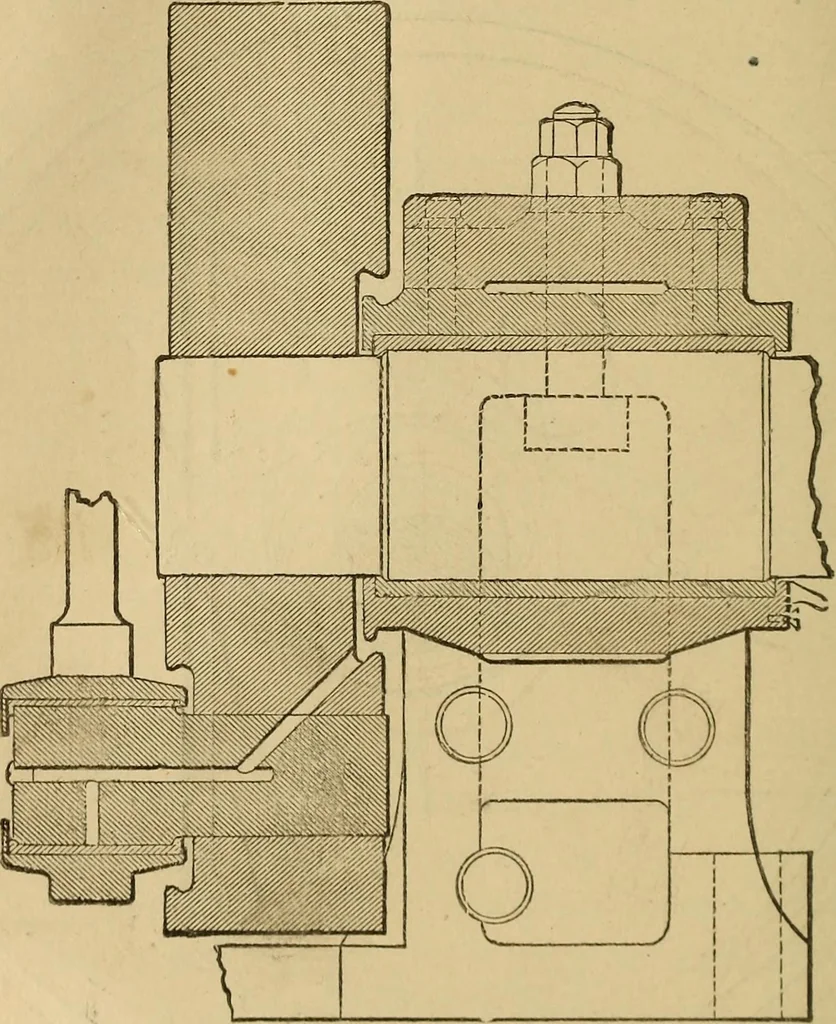

312—Governor. at full speed is enormous, the spring to counteract ithaving to sustain from two to three thoztsand pounds.Under these circumstances, as might be expected, theregulation is remarkably good. This is a very impor- ^94 MECHANICAL DRAWING SELF-7 AUGHT. tant consideration in an engine… … Fig. 313—Section of Pillow Block. tlie crank wheel has a circular oroove around its out-side, and that a corresponding groove in the crankwiicel proj(!cts over this groove. I^rom this lattergroove an oil hok^ of liberal size extends, as shown, totlu! surface of the crank-pin. Any oil placed at…
