Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 58

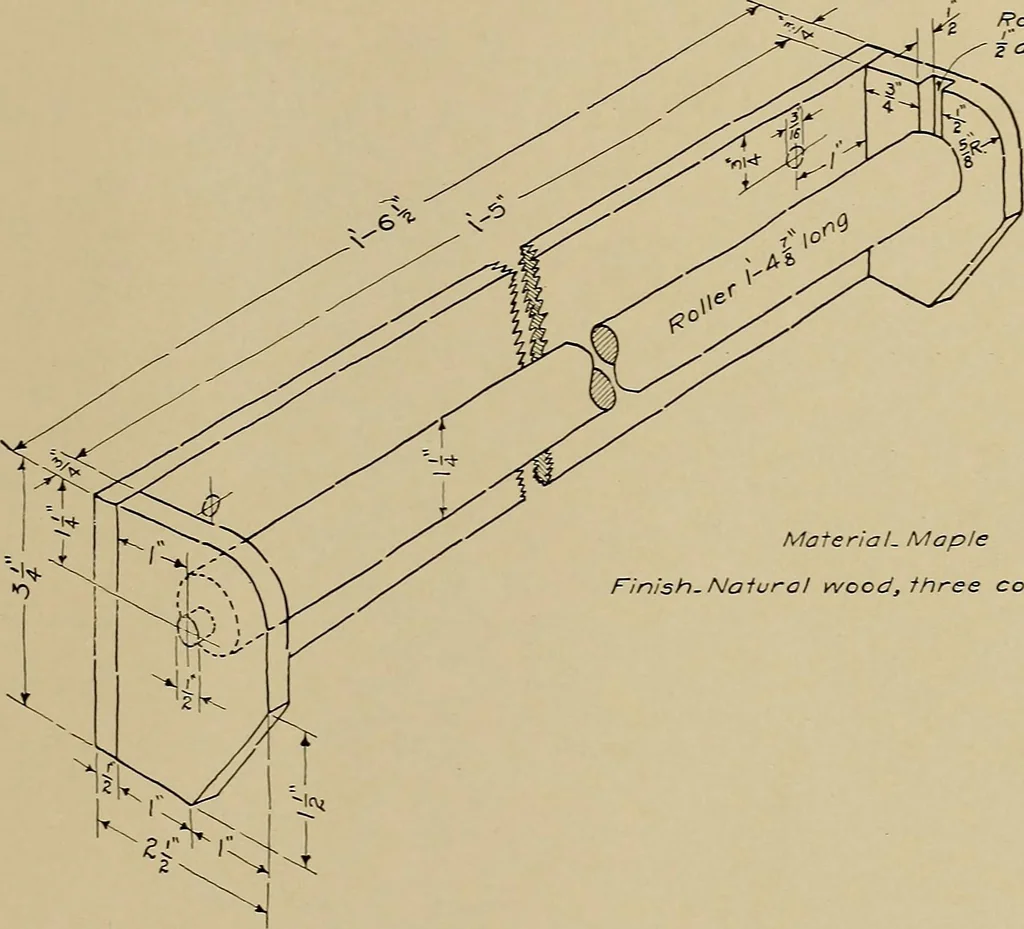

From the sketch on Drawing C-1017, the student is expectedto make a three-view mechanical drawing. These three viewsshould represent the top, front, and one end of the towel roller. Make this drawing full-size scale, with the exception of thelength, which should be taken care of by breaking out… … Roller pinj dia.X g long Material, MapleFinish.Natural wood, three coats varnish class Industrial ma,i*e John W. Roberts date Mar. 13-15. The Carnegie Institute of Technology PITTSBURGH, PA. Id a el Roller DHG.SVO-C-IO/7 LESSON No. 26. COUPLING.—From the sketch shown on Drawing C-1018,make an…
Mechanical drawing
