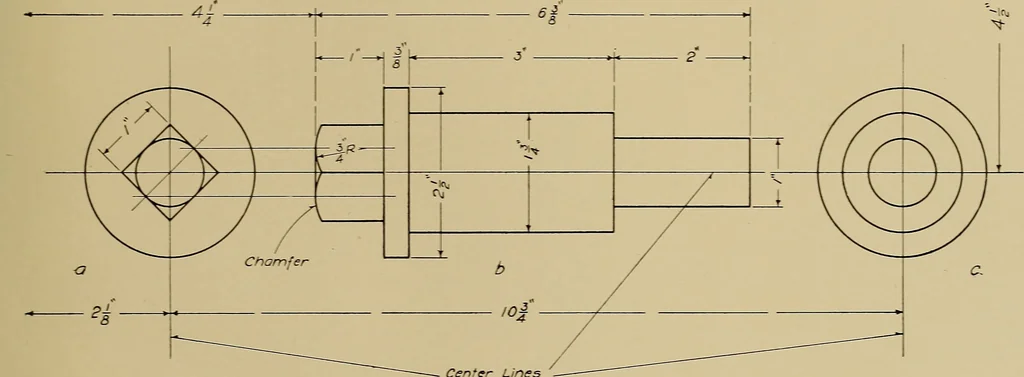

inch radius, throw in the curvedlines representing the chamfer on the shank end. Observe how theradius center line is projected from the end view. FINISHED DRAWING.—In finishing the drawing, line inthe whole outline with care to give it a neat appearance, and to makeit clear and distinct, so that… … Center Lines CLASS Industrial trade Machinist NAME John W. Roberts date Feb. 16- 06. THE CARNEGIE TECHNICAL SCHOOLS OT^SB^fSr^. PA. School or a=or£stC£S A.•^o journzymen MECMASICAL DfAWIMG Flanged Pin SCALE full Size DW6.Ha. C./QOO LESSON No. 4. MACHINE BOLT.—Make a full-size three-view…
