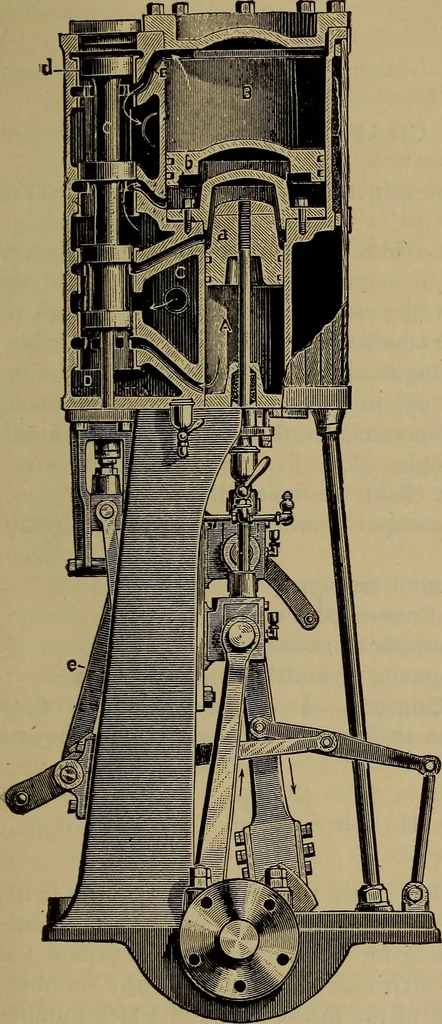

descending, and vice versa^equalizing the effect of gravity and rendering it unnecessaryto balance the living force of such reciprocating parts by arevolving counterbalance on the shaft. While the figure showsthe design of a vertical engine, the same principle holds and isapplicable in horizontal… … DESCRIPTION. A—The high pressure cylinder, B—The low pressure cylinder. C—The steam chest. D—The receiver. E—The exhaust passage. a—The high-pressure piston. b—The low pressure piston. c—The piston valve. d-The valve casing. e—-The reversing lever. F—Crank-shaft.
