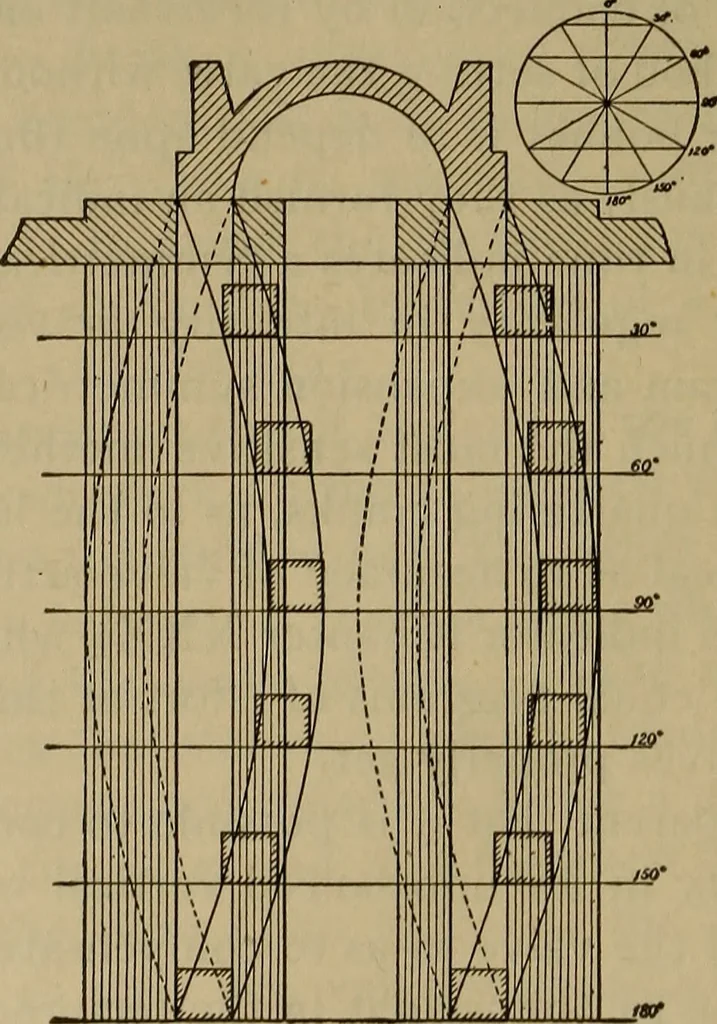

from i8o°to 270° on theincoming stroke. As the piston does not have so far to goin equal time, it does not have to move so fast in that time.It is a minor irregularity, and can be compensated in the valve-setting. 93. Motion-curves for Slide-valves. — A convenientmethod for representing graphically… … Fk;. 133.of the piston from one dead-centre to the other, and at pointsof convenient subdivision of this line the distance of the valve VALVE-GEARING. ^73 from its central position be laid off at right angles to the lineand upon the same scale, the curve drawn through the ex-tremities of the lines…
