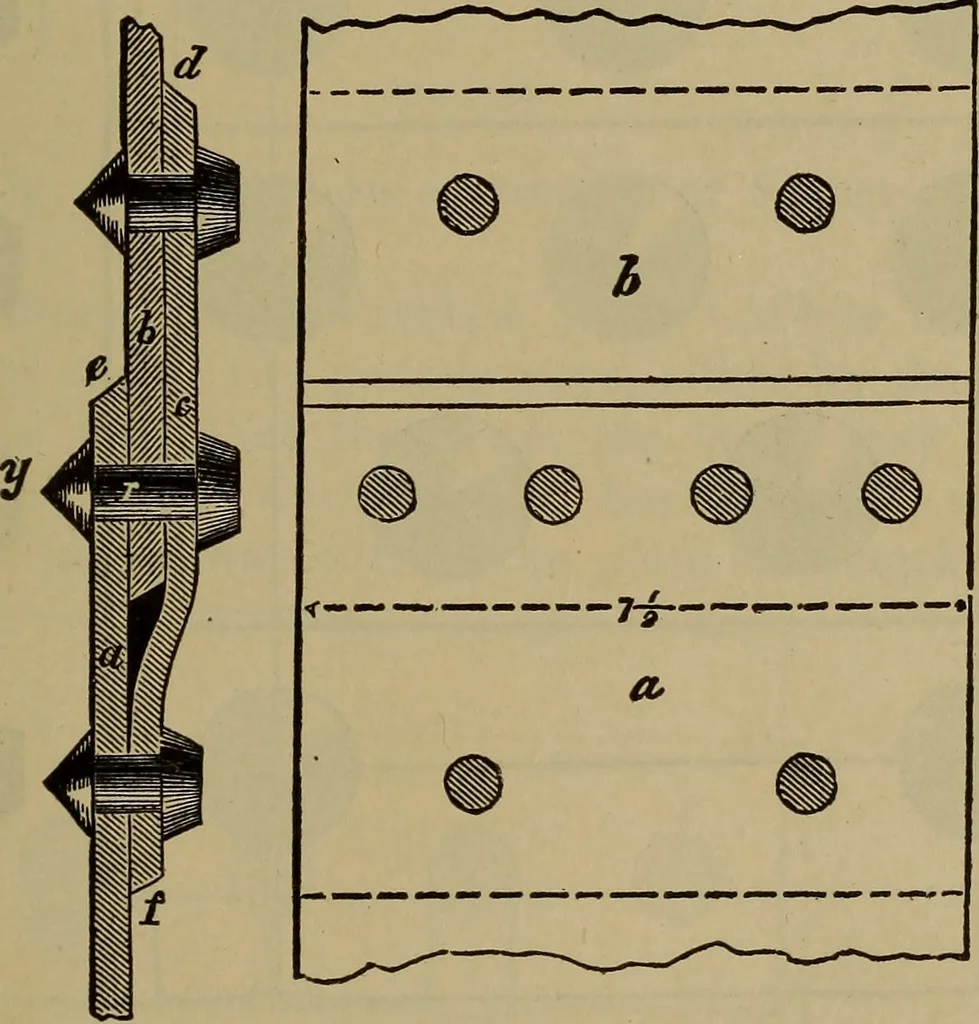

FiG. 336. nesses to one when the pull on each plate seeks to opposeitself to that exerted in the line of the other (Fig. 323). Thetreble-riveted joint (Fig. 334) gives a longer lap and moreplate area and more rivet-shearing area, as well as a stiffer … Fig. 337. joint. The butt-joint with double cover (Fig. 338) doublesthe number of rivets required as compared with the same classof lap-joints, but the strain is in line and without tendency to 404 MECHANICAL ENGINEERING OF POWER PLANTS. flex the plates, and the rivets are in double shear. It is…
