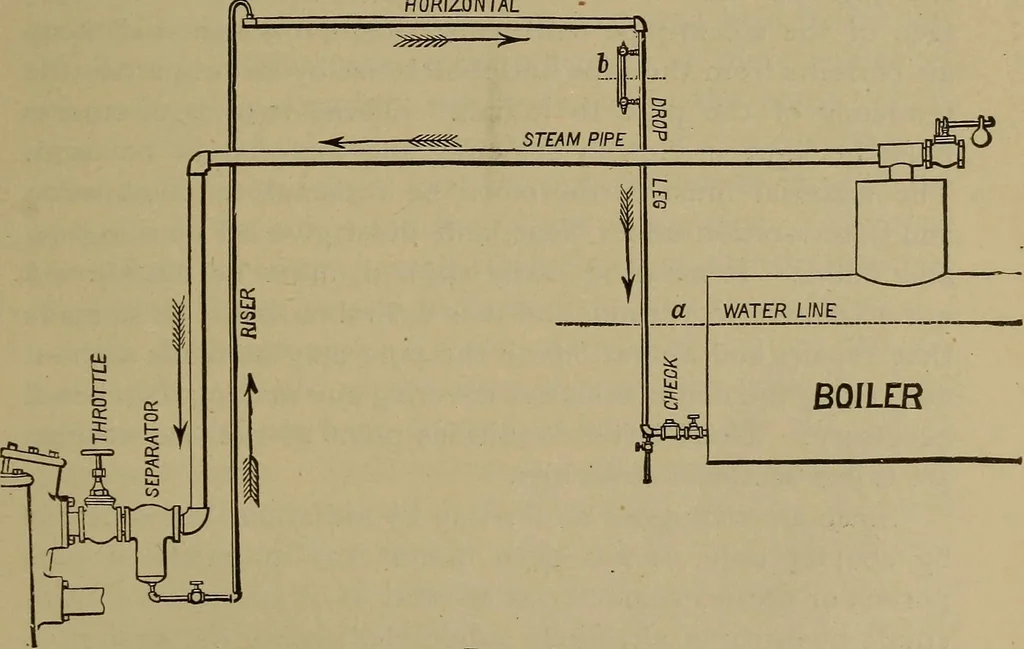

Fig. 307.worked out for use in places to which it can be satisfactorilyapplied. It is called the steam-loop and is shown in Fig.308. The pipe from the bottom of the separator becomes HORIZONTAL … Fig. 308. a species of siphon, whose length of leg is depended* upon to move the water in it by the differences of density of the water in the two legs. In the drop-leg of the 362 MECHANICAL ENGINEERING OF POWER PLANTS. loop, which is connected to the boiler below the water-line, the water is…
