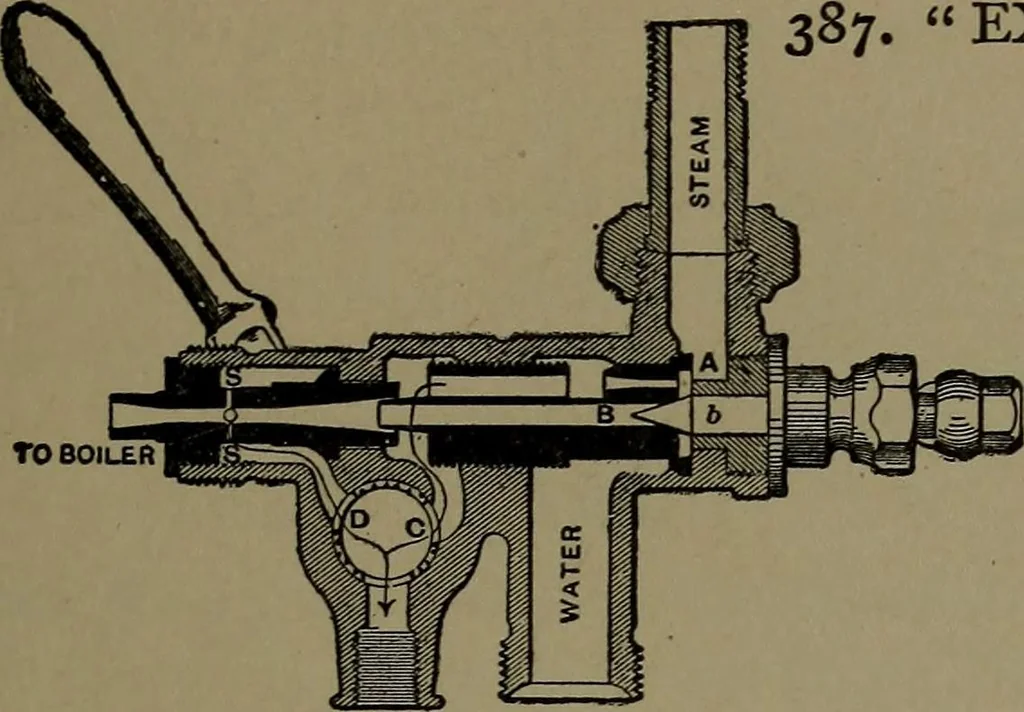

BROWNLEY INJECTOR.— The steam flows to the double-jet nozzles without any regulat-ing device other than the over-flow cock, which by this pecu-liar construction relieves bothlift and force tubes. LEADER INJECTOR.—A double-tube injector. Aseparate valve gives steamto the lifting nozzle A, withthe… … TO BOILER OVERFLOW 387. EXCELSIOR INJECTOR.— A separate valve gives steamto the lifting nozzle A, theoverflow cock D C beingopen. The first movementof the handle opens the coni-cal valve b ; 2i further move-ment closes the overflow cockD C to both the lifting andforce overflow S.
