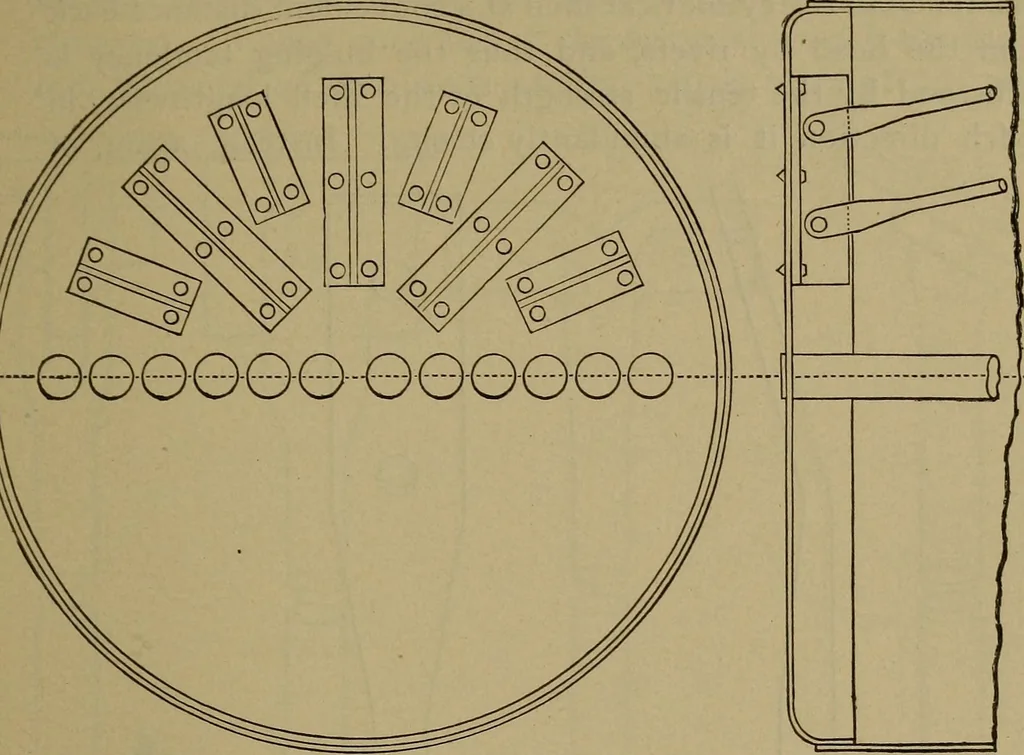

Fig. 343. irons are riveted to the head, and the stays pinned to them bypins in single or double shear; but in these arrangements theobliquity of the stay-rod indicates a prevalent arrangement formedium pressures. The inner end of the stay-rod in this case THE STEAM-BOILER. GENERAL CONSTRUCTION. 41I … Fig. 344.
