Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 254

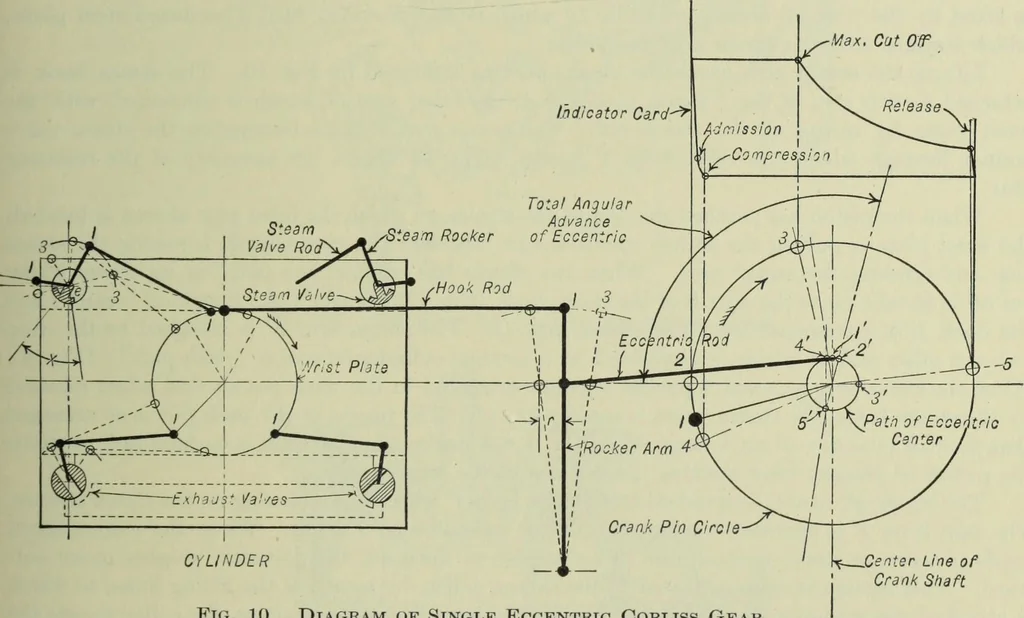

Fig. 9. Vertical Section Through a Corliss Cylinder Showing Double-Ported Valves. Max, Cot Off … CYLINDERFig. 10. Diagram of Single Eccentric Corliss Gear. clearance volume is several times smaller than is possible with a single slide valve. The netresult is an engine with an increased steam economy. The valves are operated as indicated by the diagram of connections (Fig. 10). The motionof the…
