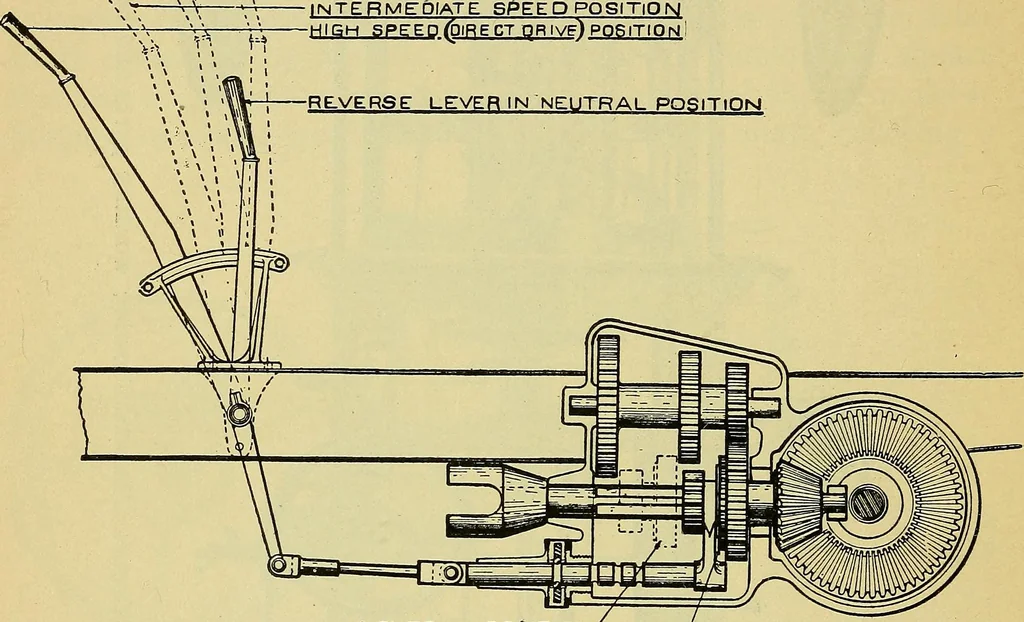

386 SHlF-PROPHlLED VBHICLBS. is obtained when the gears on the sliding sleeve are in the neutralposition (indicated by the dotted outlines in the cut), by oper-ating the short reverse lever, thus causing an idler pinion, hungon a bell crank, to be thrown into mesh with the forward (left)end gears… … NEUTRAL POSITION^ /DIRECT DRIVE POSITION Fig. 294.—Diagram of Control Levers and Transmission of the Packard Car. The Peerless Car.—The Peerless four-cylinder car combinesseveral excellent features borrowed from both French and Amer-ican masters. The framework is of cold-rolled pressed angle-steel,…
