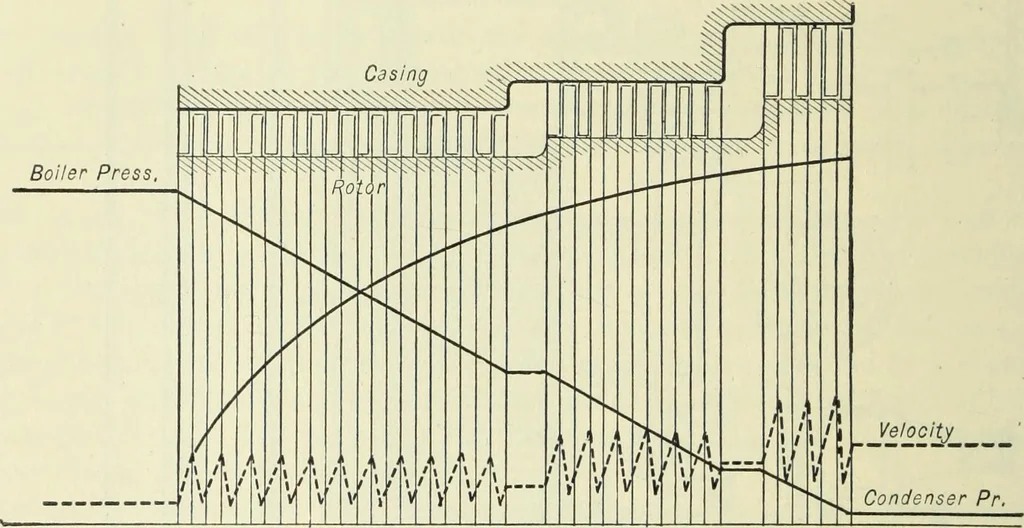

An illustration from Mechanical equipment of buildings; a reference book for engineers and architects, 1916, leaf 337 — PEEDS Peripheral Vane Speed Number ofRows Revolutionsper Minute Normal Output of Turbine FirstExpansion Last Expansion 5000 kw 135138125125125125120100100 330 280300360250260285210200 707584728077607248 750 3500 kw 1200 2500 kw . 1360 1500 kw . 1500 1000 kw 1800 750 kw 2000 500 kw 3000 250 kw 3000… … Fig. 26. Westinghouse-Parsons Turbine—Multi-Pressure—Multi-Velocity Stage. to the increase in the volume of steam as the pressure decreases. The diameters of the cylindersincrease in order to prevent excessive blade height which would otherwise be necessary to providesufficient area to pass the…
