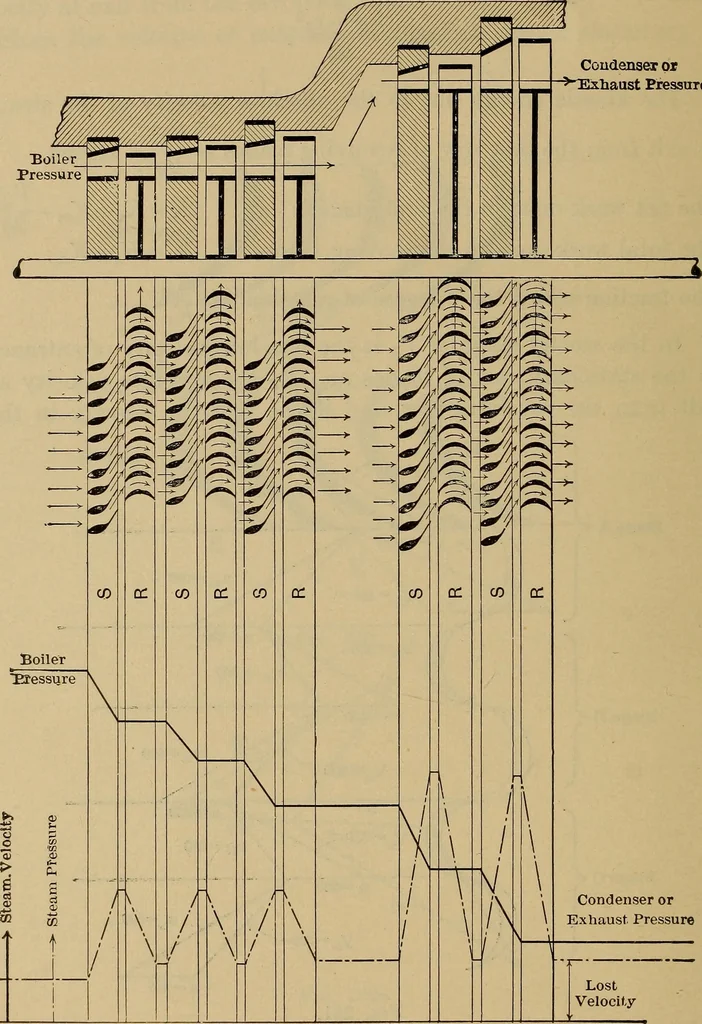

to the stationary row of blades and V2 the absolute velocity atexit from the revolving row, and if the relative velocity in the Vla=550- vu =36(T Stage A V Stage B StageC U=250 >^ V2a=500-^ r2a=690 || ^=550^. tt = 250 /vu = 360 tt=250 S VaTSQQ^ \. V 26=690 yy U=250 I V^-550-^ rlc=360… … Fig. 252.—Diagrammatic Sketch of Hamilton-Holzwarth Turbines. SUPERHEATED STEAM AXD STEAM-TURBINES. 477 If .there are (n — 1) similar stages the total work for n stages,including the first, will be V12 r22 The Hamilton-Holzwarth turbine is, like the Parsons tur-bine, a full-stroke turbine; that is,…
