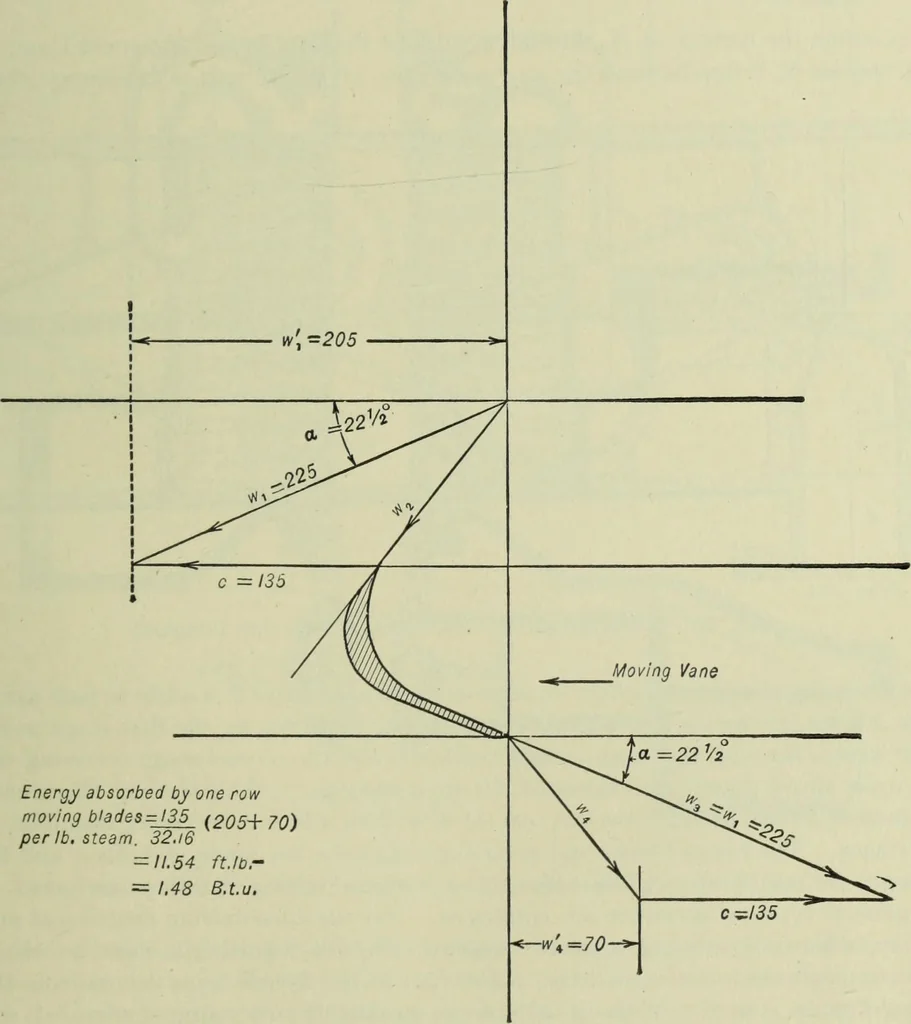

impulse Action StationaryGuide Fig. 27. Action of the Steam in the Parsons Turbine.c = Blade velocity at mean diameter, w - Steam speed due to expansion between A and B (absolute velocity). … Energy absorbed by one rowmoving biades = !35 (205+ 70)per lb. steam. 32.16 = 11.54 ftJbr= 1,48 B.t.u. Fig. 28. Velocity Diagram for Impulse-Reaction Turbine,] 322 POWER PLANTS AND REFRIGERATION the guide vanes, or w3 = wx. Constructing the velocity diagram, Fig. 28, we find w\ = 205 and w\ = 70.…
