Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 352

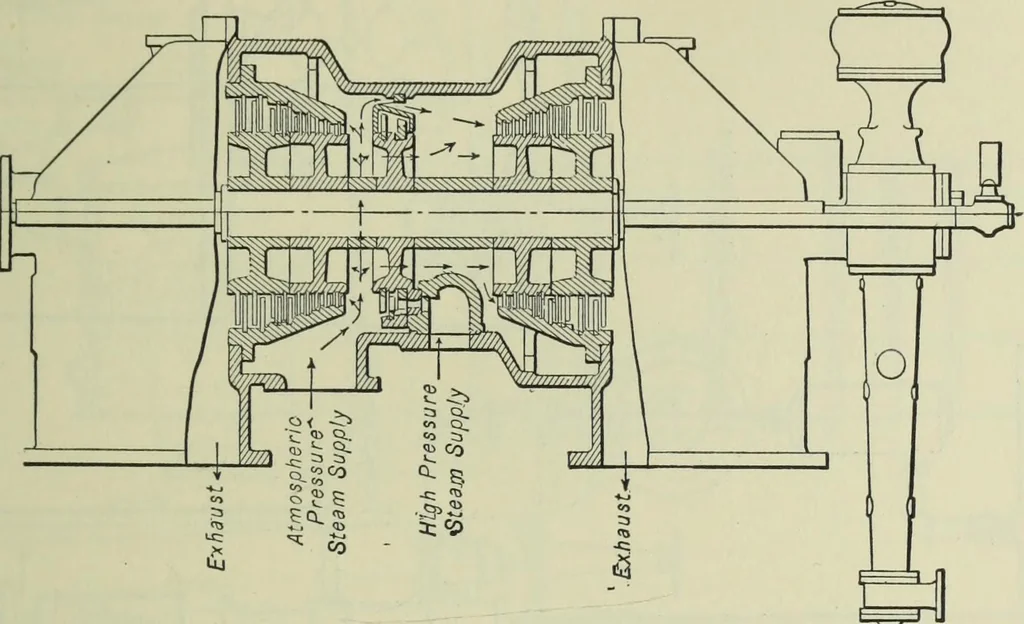

eed, or a falling off in the supply of steam. By a special pressureactuated device, the low-pressure valve may be made to close and the high-pressure valves openautomatically with decreasing supply of low-pressure steam. In order to allow the engine and turbine unit to operate safely under all… … Fig. 42. Westinghouse Double-Flow Mixed-Pressure Turbine. one direction and where disastrous effects would follow if the steam or condensate was allowed toflow into the engine or turbine in a direction contrary to that for which it was designed. Thegeneral arrangement of piping for a mixed turbine…
Building · Heating · Ventilation
