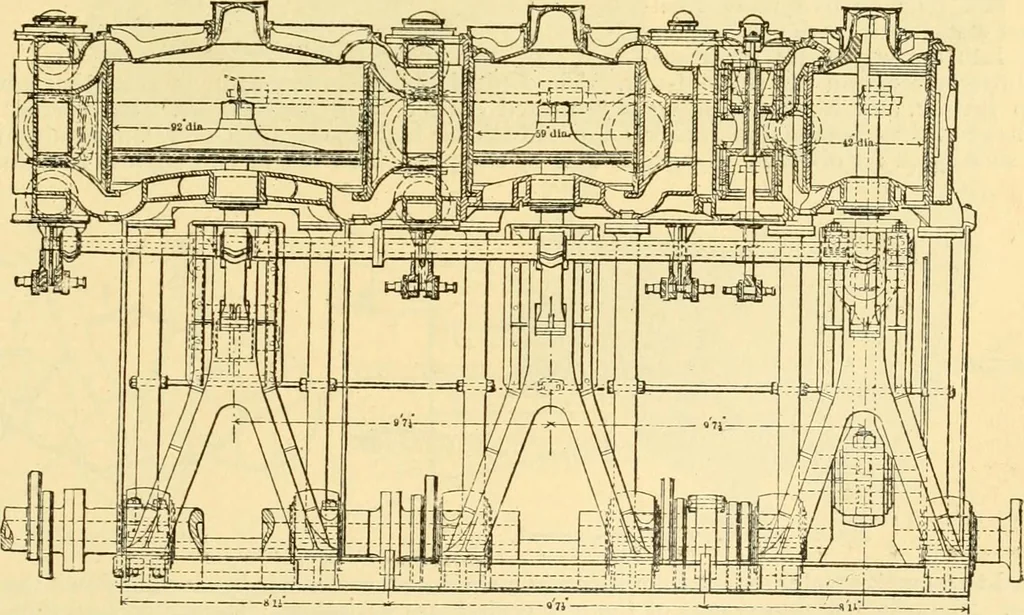

e cylinder 56 and 86 in. in diameter, respect-ively, with a piston-stroke of 66 in., working tandemwise, in connection with a double-throwshaft. There is only one pair of stuffing-boxes between each pair of cylinders, and amplespace has been provided for the easy removal of the intermediate and low… … Fig. 3.—Triple-e.xpaasion engine. up to the bore of the cylinders by short spiral steel coils. The two high-pressure cylinder-valves are of the piston type, the intermediate being on the trick principle, and the low-press-ure is double-ported. The valve motion consists of the double-barred link…
