Kirkman, Marshall M. (Marshall Monroe), 1842-1921 · New York and Chicago, The World railway publishing company · leaf 47

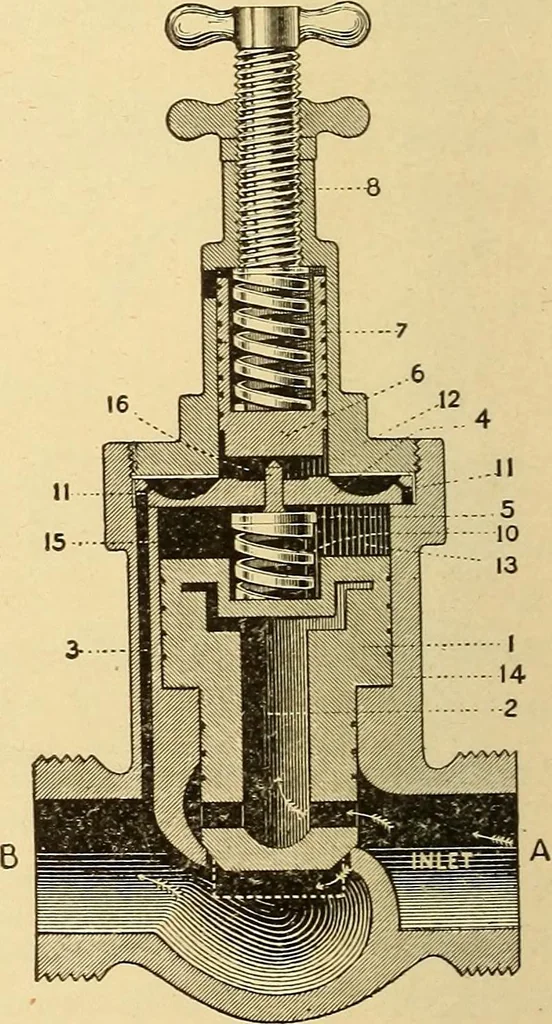

the arrows.The reduced pressure steam from B also acts upwardthrough ports (3 and 11 ) upon the under side ofregulating piston (6). If spring (7) were set for say100 pounds, as soon as the pressure on the under side 8.10.11.12.13.14.16. Main Valve. Opening in Main Valve. Port Leading to the… … Fig. 3. Climax Steam Pressure Regulating Valve. of regulating piston (6) reached that amount, it wouldmove slightly upward and away from its former con-tact with the auxiliary valve (16), thus allowing 16to seat in disc (4), thereby preventing the furtherescape of steam from the controlling chamber…
Locomotives
