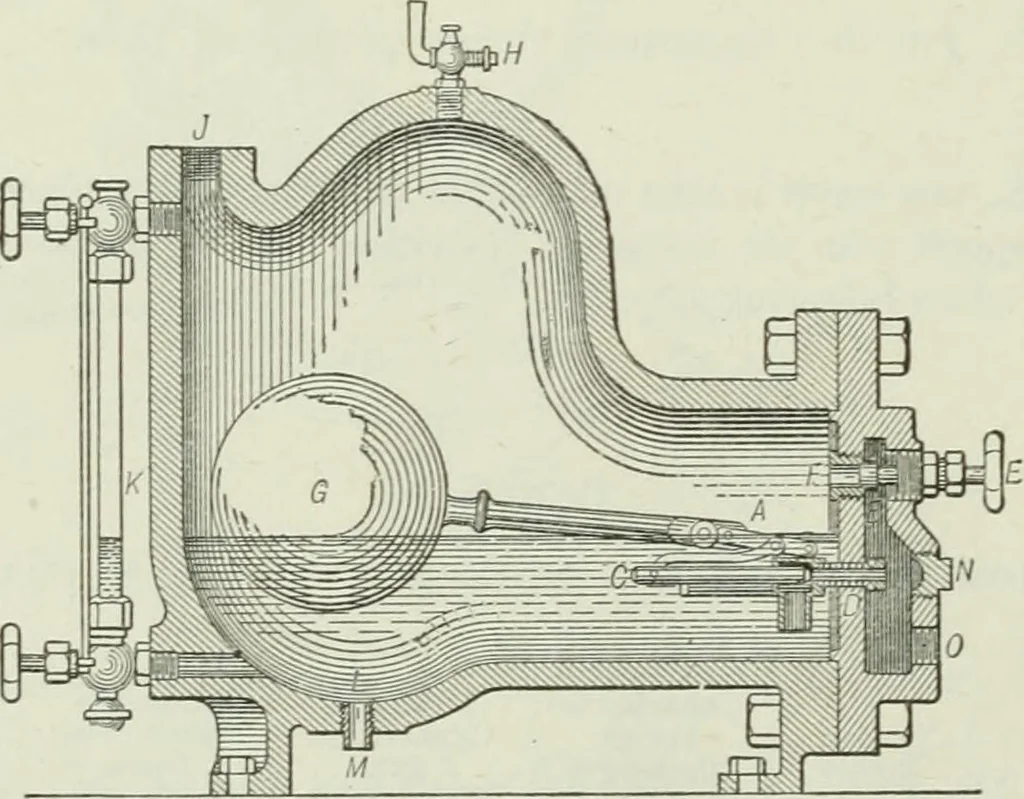

4-inch pipe equals one square footof surf ace.2 feet of 1 /2-inch pipe equals one square foot of surface. l.Cl feet of 2-inch pipe equals one square foot of surface, TABLE 9MOREHEAD RECEIVERS Number Length,Inches Height,Inches Diameter,Inches 1 3040 1620 10 2. 12 Note.—No. 1 Receiver has capacity… … Fig, 37. American Ideal, Non-Return Trap for Low Pressures. A. Powerful valve mechanism. C. Valve stem. D. Valve seat. EE. By-pass valve and outlet. F. Bv-pass valve seat. G. Float.H. Air cock. J. Inlet.K. AVater gage. L. Sediment chamber.A/. Blow-ofif for sediment.N. Plug to valve seat. O. Outlet.…
