Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 441

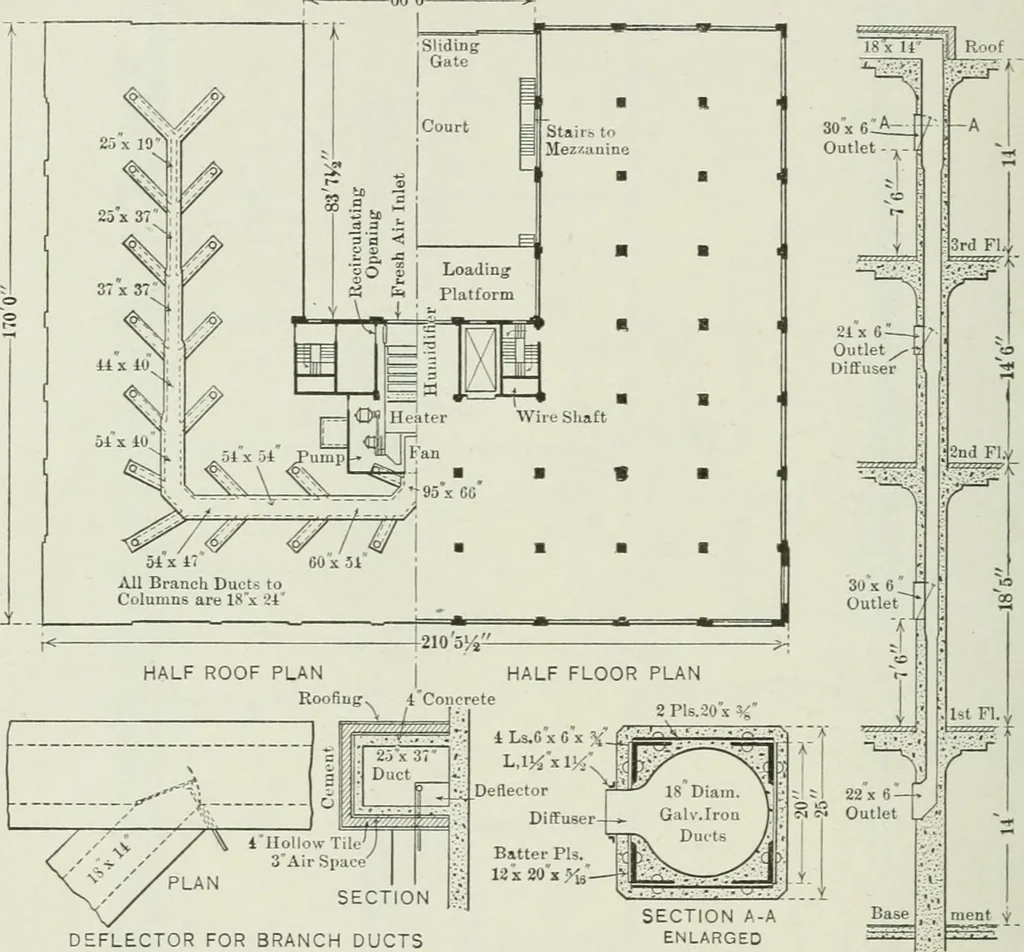

with Fan and Heater in Basement. Ducts in Outside Pila.sters. 422 HEATING AND \EXTILATIOX cu. ft. of air at 90° F. per minute to the building. This fan must always run at rated speed,using alternating current. The air supply is taken at the attic floor Une through lowered open-ings, but by the use… … SECTION DEFLECTOR FOR BRANCH DUCTS TYPICAL SECTIONTHROUGH COLUMNS Fig. 62. Factory System with Fan axd Heater on Roof. Ducts in Hollow Columns.* two banks and contain 2790 lineal ft. of 1 pipe each while the latter contains 1900 Uneal ft., agrand total of 7480 lineal ft. for the entire system. The…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
